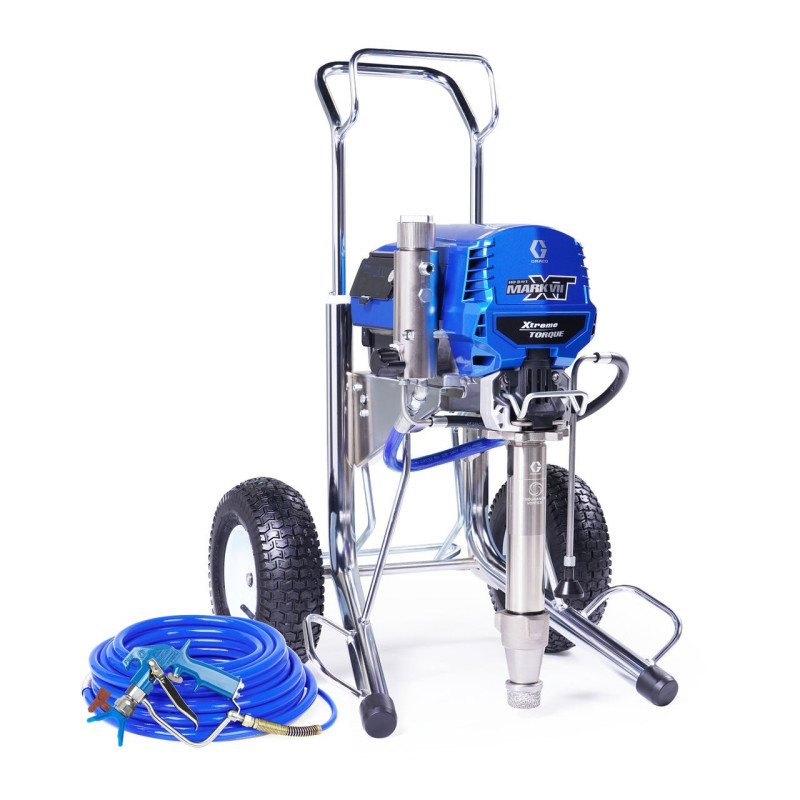

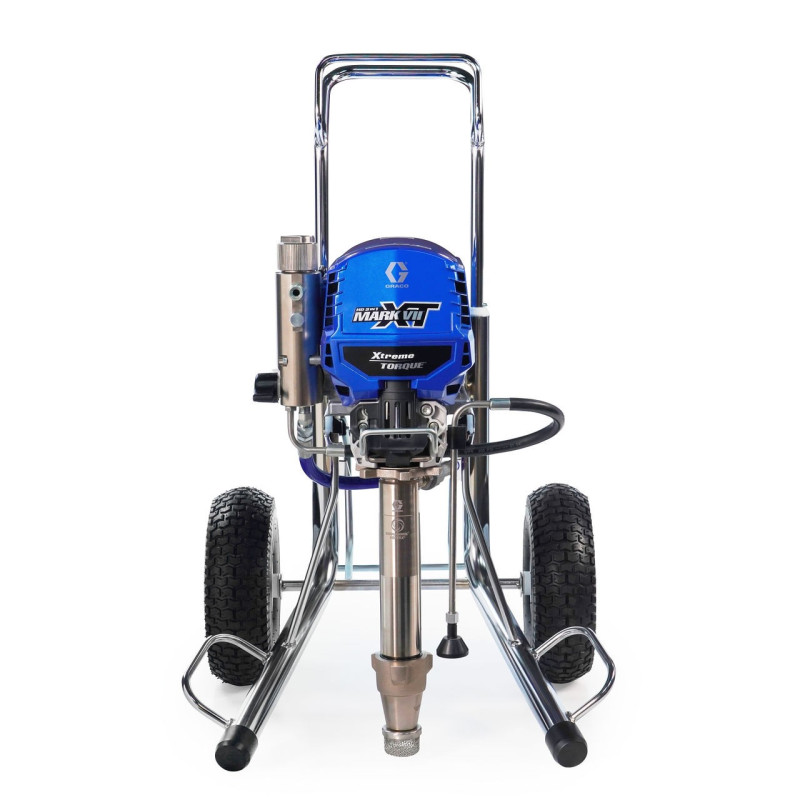

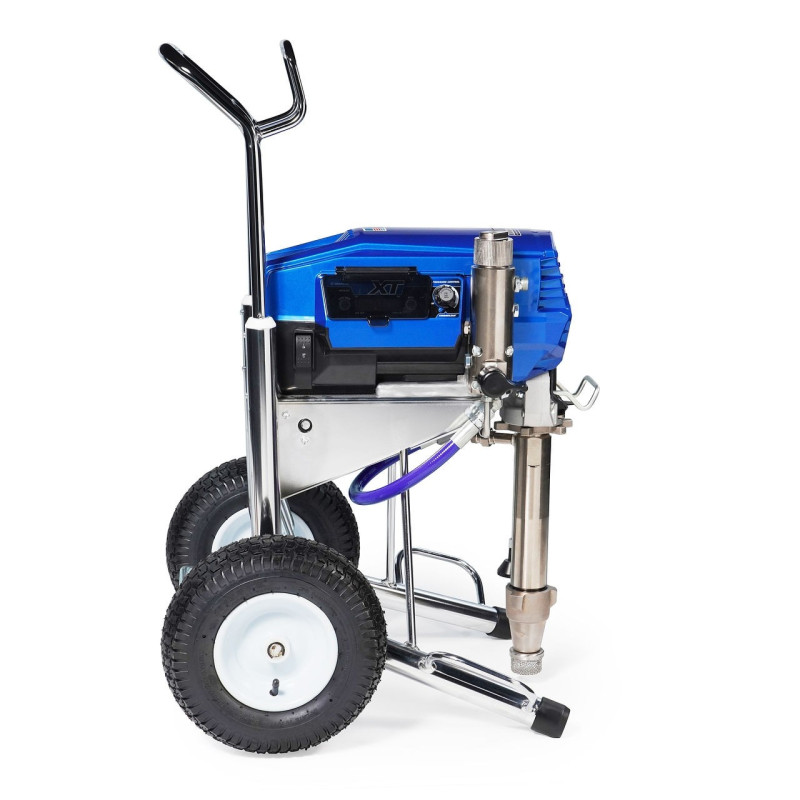

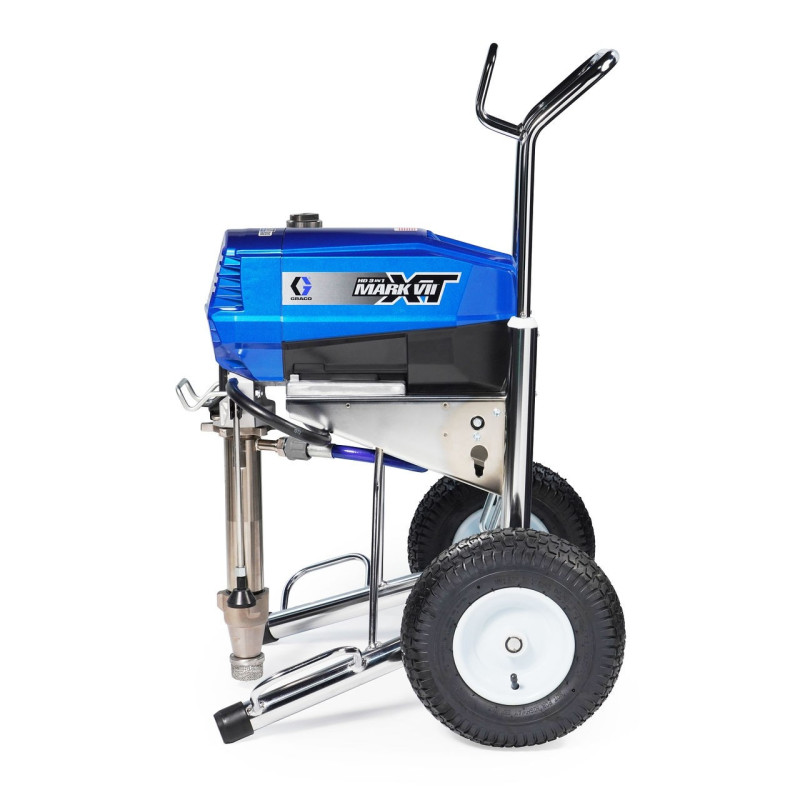

Graco Mark VII XT HD 3-in-1 paint and filler unit

With its Xtreme Torque motor, precise pressure control and modular design, it is the ideal choice for spraying paint, fillers and finishing coats over large areas.

Key product features:

• Xtreme Torque motor – 2.9 HP: 15x more torque than standard motors, 8 magnets for maximum power and efficiency.
• Operating modes: choose between low (3–140 bar) and high (35–227 bar) pressure – adjust the performance to the task.
• Endurance Vortex pump with ProConnect: 3x longer service life than competing pumps, easy replacement without tools.
• Quick pressure adjustment: instant system response guarantees a perfect finish regardless of the medium.
• TurboClean system: up to 3x faster cleaning with 50% less water consumption.
• Easy Out filter: easy access and cleaning – less downtime, greater reliability.
• WatchDog system: automatic shut-off when there is no material protects the pump from damage.
• Digital LED display: easy to read even in difficult working conditions – constant monitoring of parameters.
• Hi-Boy platform with large wheels: facilitates manoeuvring and transport on the construction site.
• Compatibility with XT accessories: quick expansion of functions without the need to replace the device.

Technical data:

• Device type: Airless spray device
• Series/model: XT/Mark VII
• Weight: 57 kg
• Maximum operating pressure: 227 bar / 3,300 PSI
• Minimum operating pressure: 3 bar / 50 PSI
• Maximum flow rate: 6.4 l/min
• Maximum nozzle size: 0.047 in
• Frame configuration: Hi-Boy (with wheels)

Included:

• Blue texture spray gun
• RAC X HDA SwitchTip nozzle
• Endurance Vortex MAXLIFE EXTREME pump
• CrushProof suction filter
• Durable FlatProof wheels – puncture resistant

Ideal applications:

• Spraying dispersion, latex and emulsion paints
• Spraying of fillers and gypsum finishes
• Large wall and ceiling surfaces – houses, halls, industrial facilities

Who is it for?

The Graco Mark VII XT is for professionals and contractors who carry out large projects and need a unit for intensive, daily use, including with highly viscous materials.
