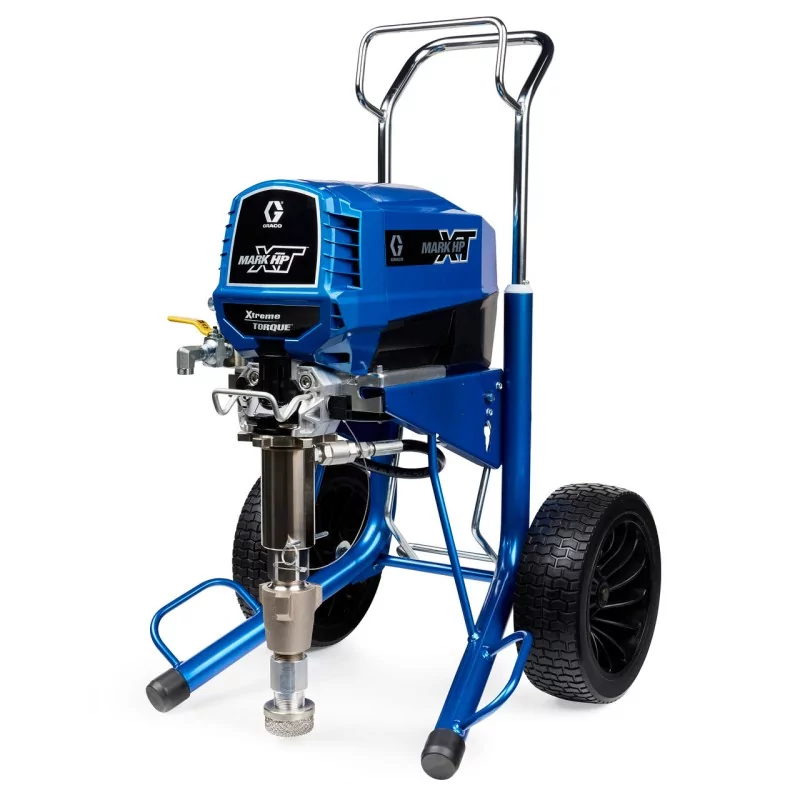

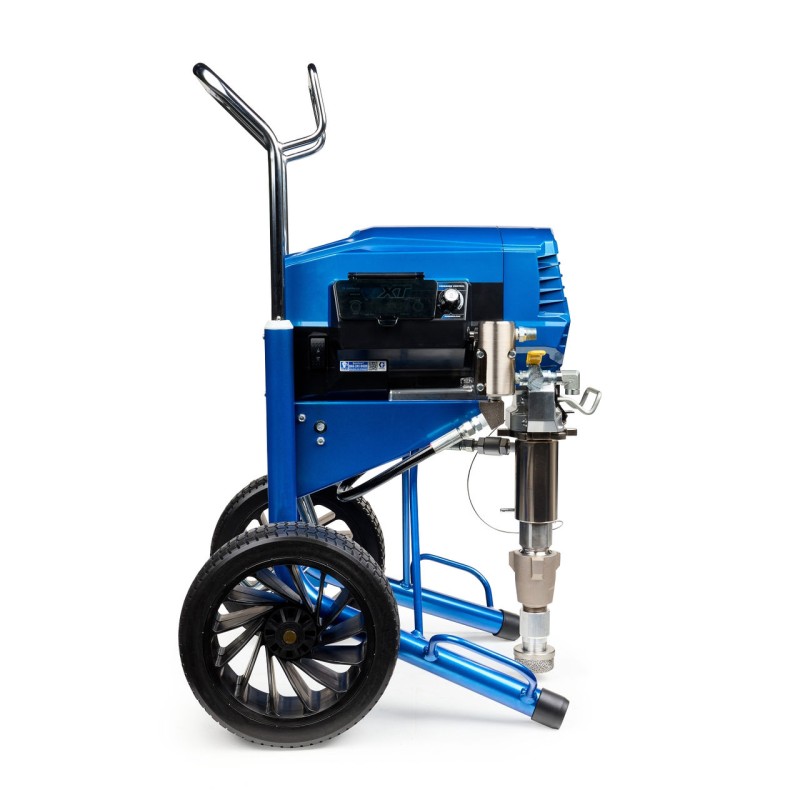

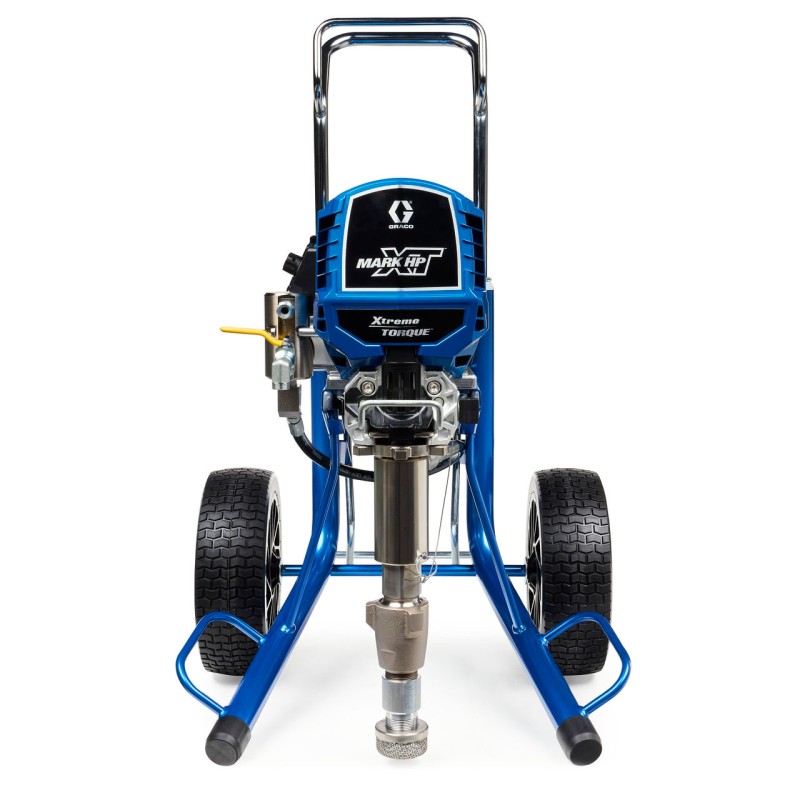

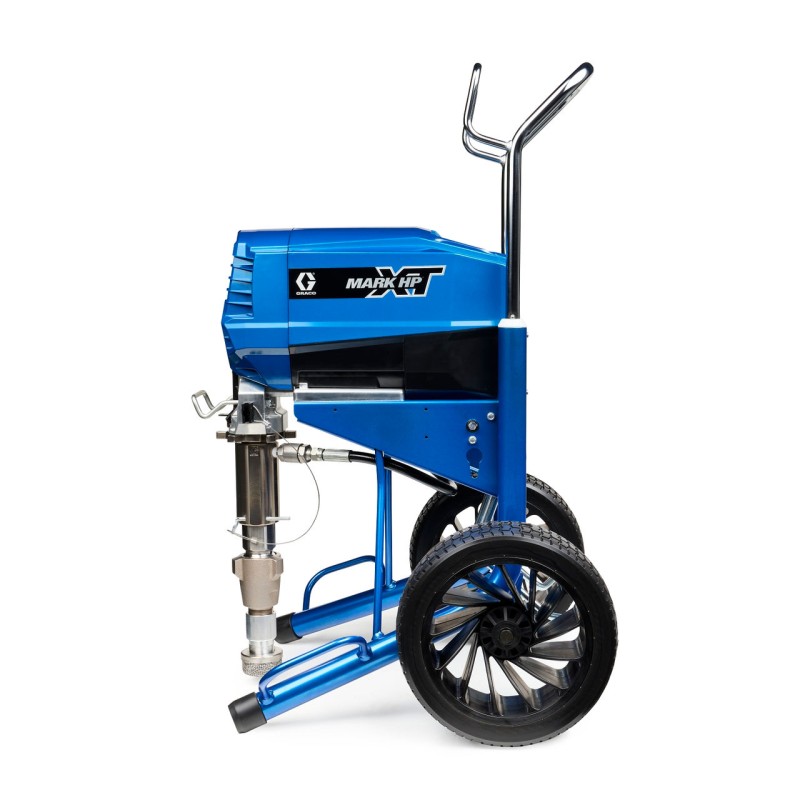

Mark HP XT Standard Paint and Filler Machine

Features

Maximum performance powered by a wall socket. Graco’s Amplifi™ technology transforms standard mains power into performance on a par with petrol-powered units.

Delivers the 6,750 PSI pressure required for roofing and protective coatings, ideal for silicone, epoxy, vapour barrier and intumescent coatings. An electric alternative to petrol-powered spray systems, offering the same performance, lower weight and no need for fuel.

Groundbreaking performance comparable to petrol-powered units, using standard 120 or 230 V mains sockets

XT motors with Amplifi technology – a high-torque design delivers up to 50% more power from the same mains socket

Lightweight: the new Mark XT sprayers are lighter than most petrol-powered sprayers. This offers greater flexibility on site and requires fewer staff to move the equipment.

Wide range of materials: Mark HP XT sprayers are designed for use with a wide range of materials, from paints to partition wall products and beyond. These are delivered via two vertical pumps. Paints, primers, plasterboard compound with up to 100 per cent solids, epoxy coatings, polyurethane, silicone, vapour barriers and more

The Endurance pump with ProConnect features large channels and the ProConnect pump removal system, enabling teams to spray without hindrance

Quiet operation with an electric motor – less noise and greater flexibility, ideal for indoor work or long working hours

Technical specifications

• Chassis configuration: Hi-Boy
• Maximum flow rate (l/min): 5.7
• Maximum working pressure (bar): 465
• Maximum nozzle size (in): .041
• Minimum generator power (W): 5,000
• Minimum operating pressure (psi): 50
• Model: Mark HP
• Sound pressure level (dB): 79
• Series: XT
• Product range: Standard
• Type: Airless spray unit
• Weight (kg): 73
• Fluid outlet diameter (in): 0.5
