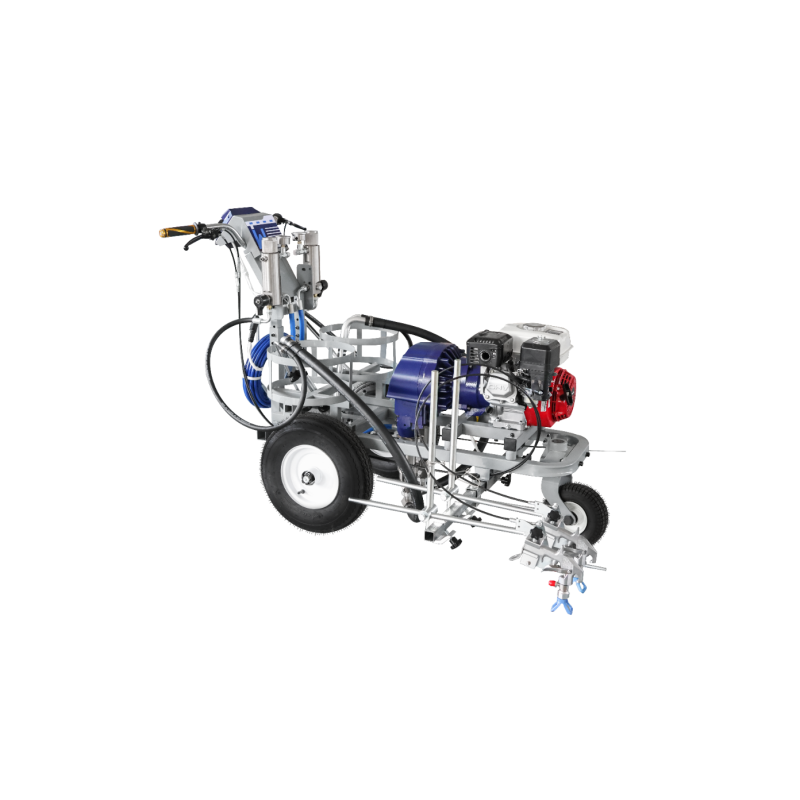

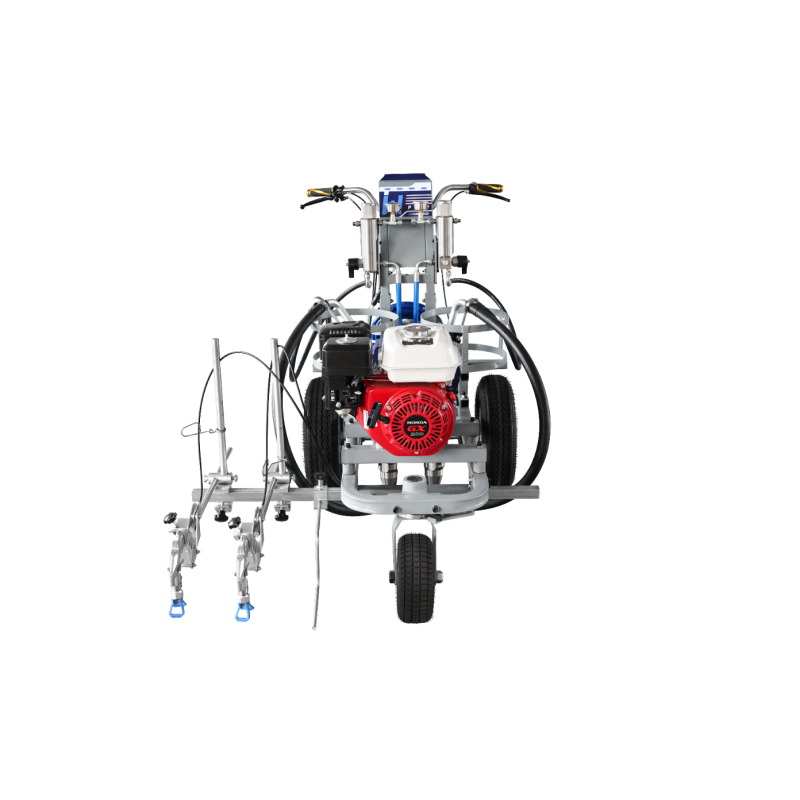

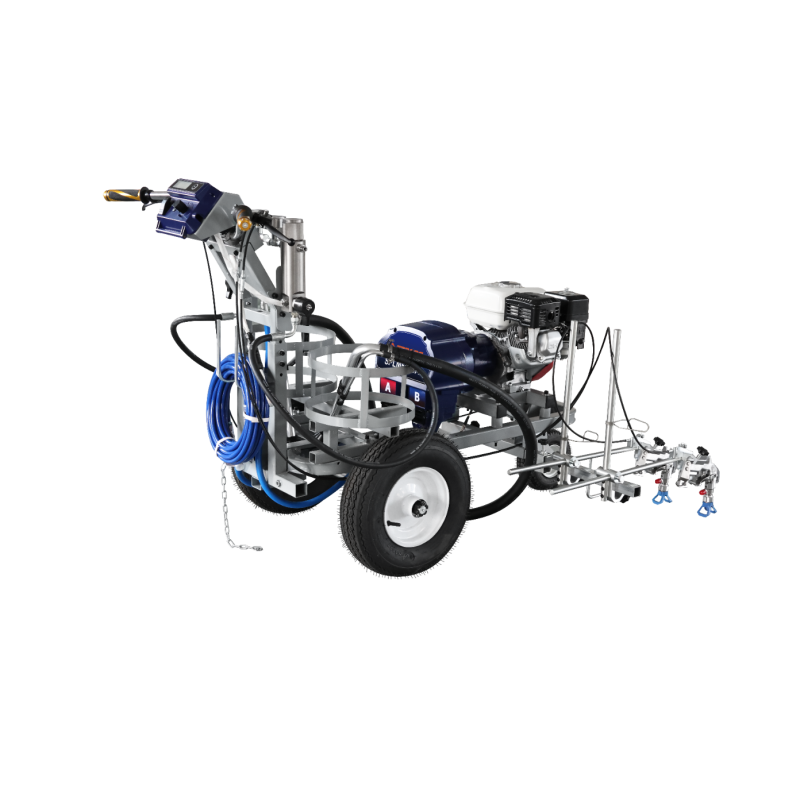

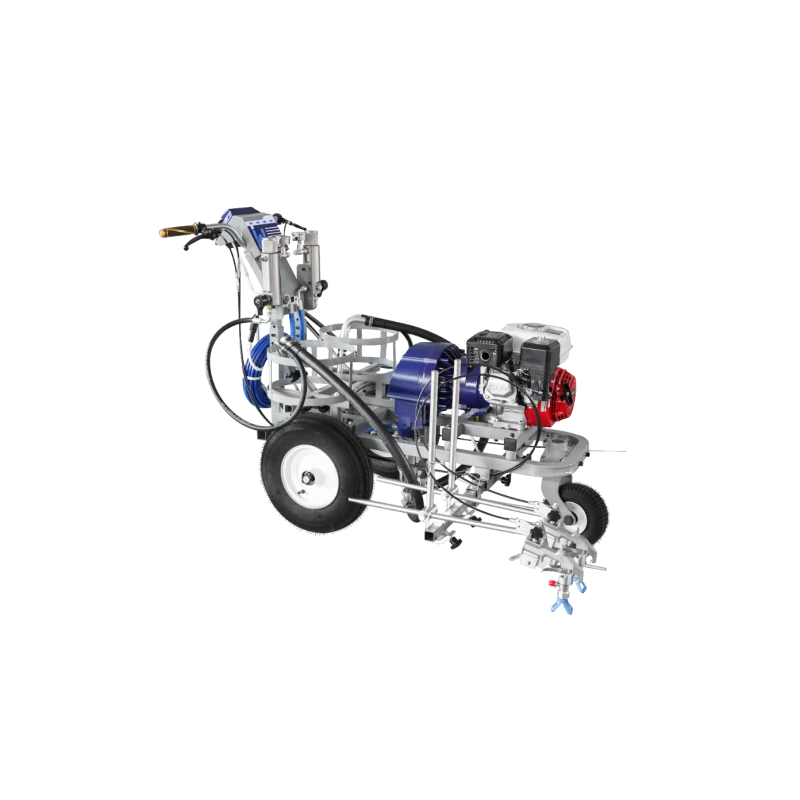

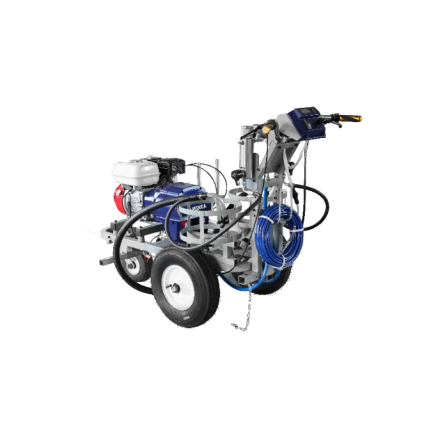

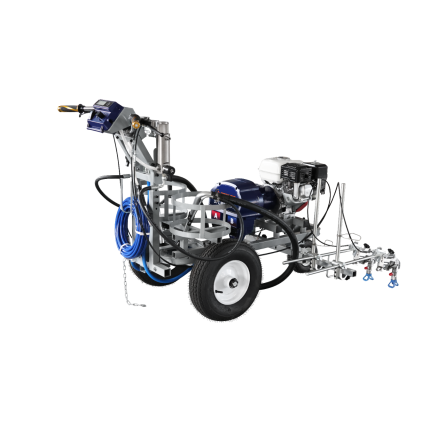

SPLM5900A road marking machine for lanes - STRONG-TECH

The Strong-Tech SPLM5900A road marking machine has two independent pumps, which allow spraying with two guns (and colours) simultaneously and quick colour changes without the need to flush the pump. This makes work faster and more efficient, which translates into lower costs and greater efficiency. This sprayer is designed for professional marking of large areas – streets, car parks, sports fields and industrial halls.

With its higher material flow and the efficiency of two guns, the SPLM5900A is ideal for both medium and large surface marking projects. Like all our road painters, the machine can also be used for classic airless spraying by removing the gun from the holder.

The sprayer is equipped with a modern, intuitive control panel. Electric pressure adjustment and a swivel front wheel ensure excellent work quality. High performance combined with a powerful 6.5 HP Honda combustion engine ensures long and trouble-free operation. Optionally, a system for sprinkling microbeads in gravity mode can be installed.

Key advantages:

· 3-year warranty

· Attractive price for a two-station road marking machine

· Dynamic colour change without the need for flushing – operation on the selected pump

· Two separate pumps for spraying two colours simultaneously

· Intelligent pressure control

· Automatic safety valve to prevent excessive pressure

· Wheel lock in the steering wheel

· Universal gun holder

· Interchangeable spray guns for full painting performance with a template

· Can be used as a painting machine – the spray gun can be removed and used for manual painting, e.g. pedestrian crossings, road signs, kerbs, posts, bridges

· High pressure for applying paint to asphalt

· High speed of road paint application

· Minimal dust during car park marking

· Can be used without transferring paint from the factory container

· Possibility of marking a wide line for pedestrians in a single pass

· Large, durable pneumatic tyres

· Front swivel wheel – moves straight and unlocks for easier manoeuvring

· Small turning radius for quick painting using stencils

· Can be connected to a drive trolley

Application:

• Marking car parks, underground garages and sports facilities
• Painting airports, warehouses and production halls
• Horizontal marking of streets and roads
• Classic airless spraying – facades, halls, pillars, bridges

Recommended materials:

• Water-based and solvent-based paints
• Specialised paints for horizontal marking
• Acrylic, dispersion, silicone paints and other products for road surfaces

Technical parameters of Strong-Tech SPLM5900A:

• Max. operating pressure: 230 bar
• Max. output: 8.8 l/min
• Max. nozzle size: 1 gun - 0.045", 2 guns - 0.031"
• Internal combustion engine: 6.5 HP HONDA
• Weight: 145 kg
• Dimensions: 123 x 82 x 84 cm

Equipment:

• 1/4" paint hose 15 m 2 pcs
• airless paint spray gun – 2 pcs.
• road nozzle – 2 pcs
• high-pressure filter – 1 pc.
• tool kit
• 0.2 l piston oil
• user manual in Polish
