AR100 Road Marking Machine - VOLANTE CMC

AR100 VOLANTE CMC 98:2 chemospray road marking machine with intermittent line system

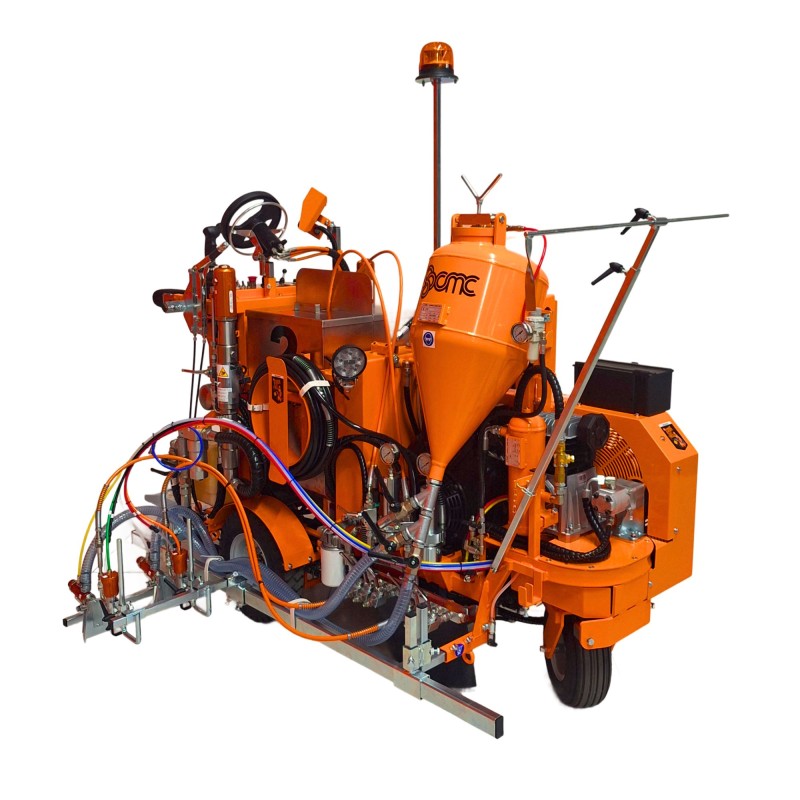

AR100 VOLANTE is an efficient, self-propelled road marking machine using airless or chemospray (98:2) technology, designed for applying road markings. The machine is designed for the application of both 1k and 2k acrylic paints (chemically curable paints). Its construction (500 kg), hydraulic drive and hydraulically controlled swivel front wheel ensure high precision of operation.

Automatic broken line system

The machine is equipped with an electronic spacing module, which enables:

• automatic painting of broken lines,
• adjustment of the length of the painted section,
• adjustment of the gap between segments,
• repeatability of markings in accordance with road standards,

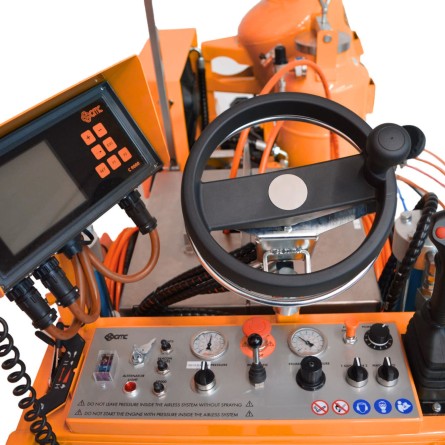

• control from the operator panel.

The system significantly increases work efficiency and eliminates errors resulting from manual control of the spray gun.

Key features of the device

• Painting technology: chemospray 98:2 (2k) or airless

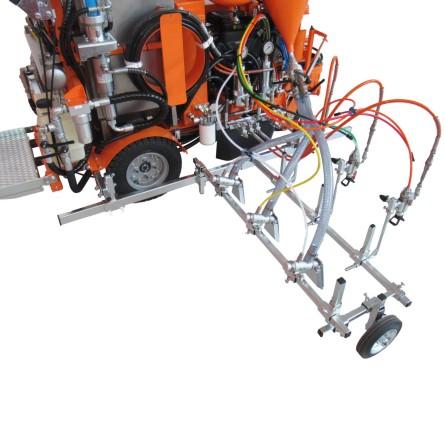

• Number of spray guns: 1 to 3
• Maximum line width: up to 90 cm (with 3 spray guns option)
• Pressure-fed microbead system
• Hydraulic drive with variable displacement pump
• Hydraulic steering assistance (steerable front wheel)

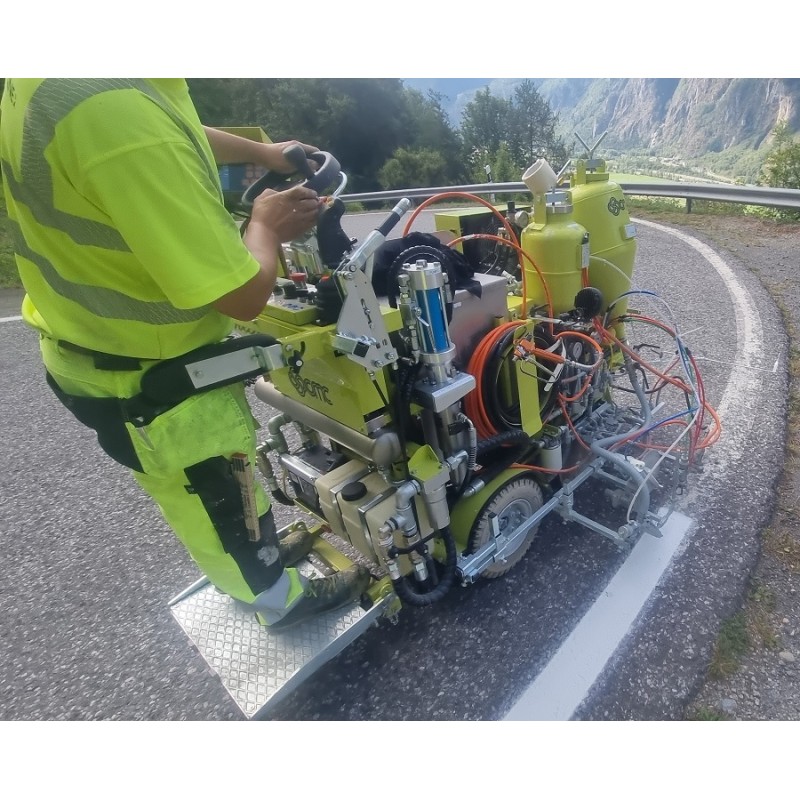

• Operator platform (standing operation)
• Joystick control of spray guns
• Working lights + LED warning light
• Sliding marking system (from rear to front axle)

Technical data

• Engine: 18 HP petrol
• Start-up: electric
• Paint pump: hydraulic airless piston – 9 l/min
• Compressor: 394 l/min
• Standard: 1 automatic spray gun (10–15 cm line)
• Filter: high-pressure paint filter
• Dimensions: 2180 × 730 × 1535 mm
• Weight: 500 kg

Application:

The AR100 VOLANTE is ideal for:

• continuous and broken lines,
• pedestrian crossings,
• road signs (when using a hand gun).

Equipment:

• plastic paint tank - 100 l with suction hose
• glass microbead tank - 38.5 l
• catalyst (hardener) tank - 15 l
• airless piston pump with a capacity of 9 l/min
• pneumatically controlled airless spray gun - 1 pc.
• pneumatically controlled microbead spray gun - 1 pc.
• pneumatically controlled catalyst spray gun - 1 pc.
• automatic intermittent line system.
