Turbosol TSR 7 concrete spraying boom

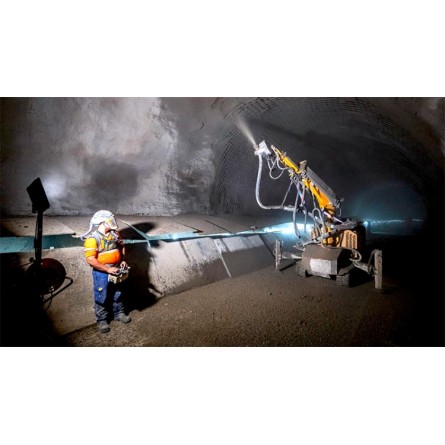

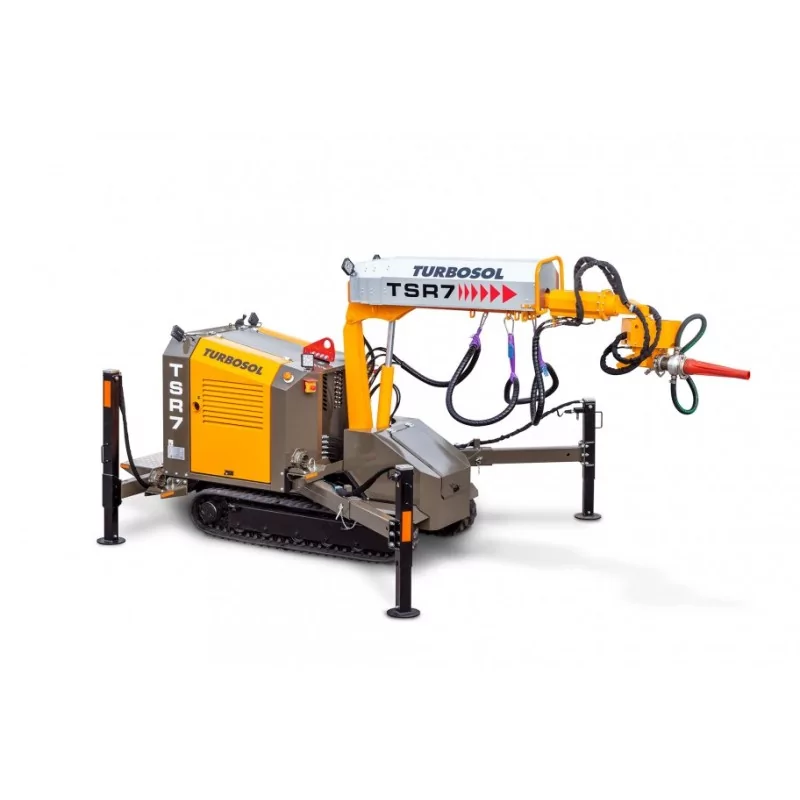

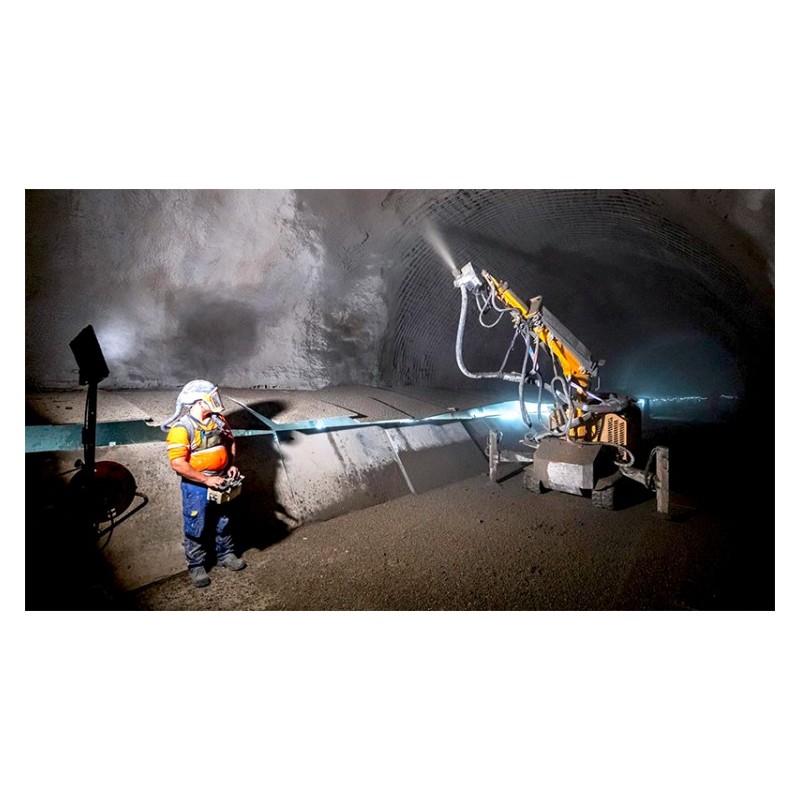

The TSR 7 is a manipulator mounted on a tracked chassis, designed for concrete spraying. It is a practical solution offering complete freedom of movement across difficult and uneven terrain. The machine can be easily connected to concrete pumps for shotcrete work.

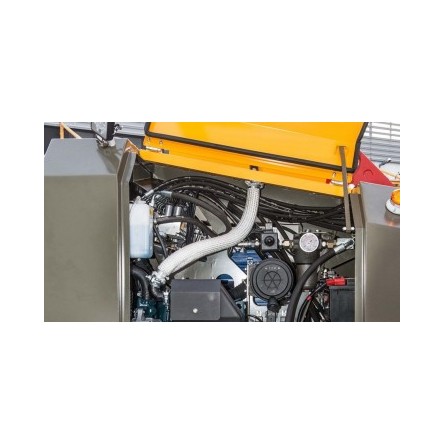

The TSR 7 model has two separate power sources – a diesel engine and an electric motor. The use of two power sources allows the machine to be used even in areas with limited access to electricity. Thanks to its robust, 4-section telescopic boom, the machine offers a long reach and a compact design; the TSR 7 is equally suitable for both dry and wet shotcrete applications. Thanks to the ergonomic side guards, inspection and maintenance work can be carried out with ease. Concrete pumps such as the Beton Master, TB 30 and many others are the ideal complement to the TSR 7 model.

Optional:

  • Shotcrete guns
  • Shotcrete hoses Ø 50, Ø 65 and Ø 75
  • Setting accelerator hose
  • Air hose

Technical specifications:

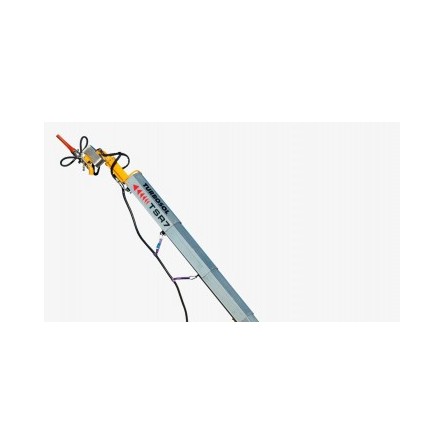

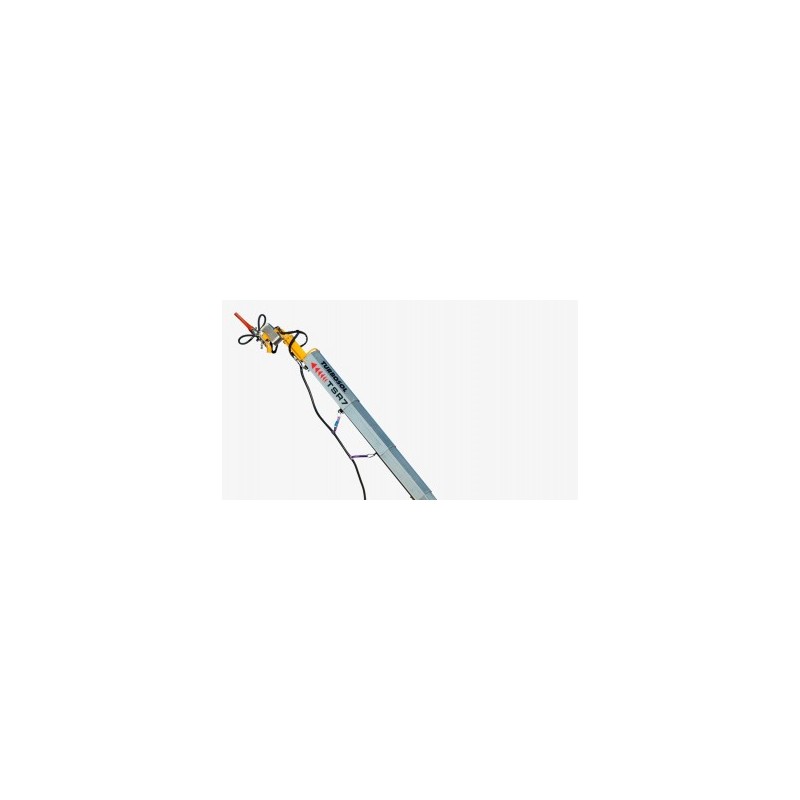

TELESCOPIC ARM:

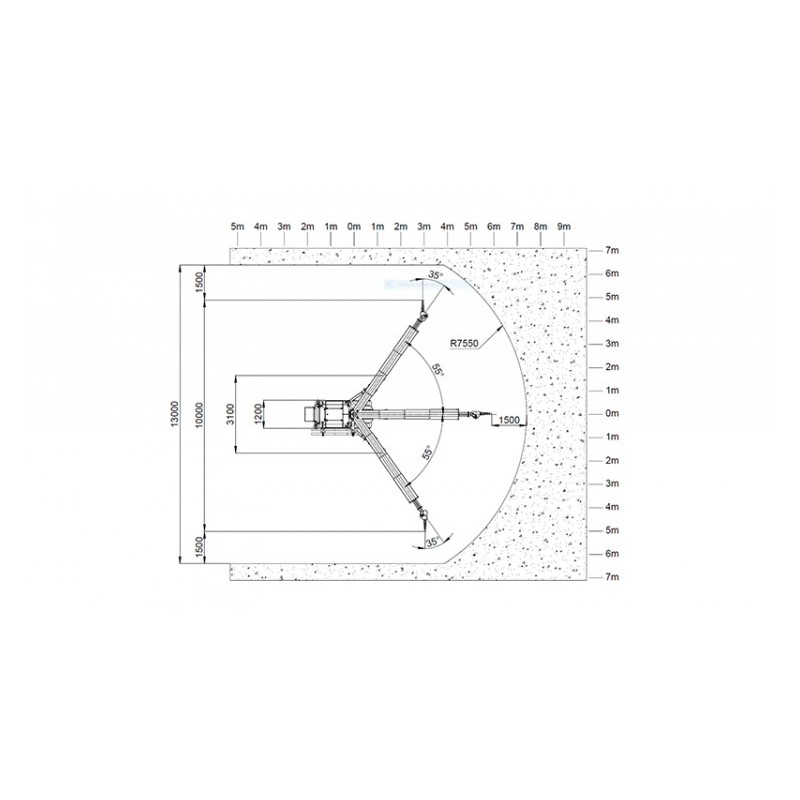

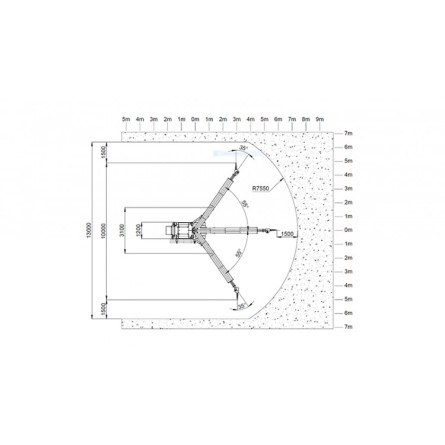

  • Maximum spray range: vertically 8.80 m / horizontally 7.70 m
  • Minimum spray range: vertical 2.5 m / horizontal 2.4 m
  • Boom: 4 sections (3 telescopic), proportional drive
  • Telescopic stroke: 3 m
  • Work lights: 2 x 15 W LED spotlights

SPRAY HEAD

  • Rotation range: 360°
  • Tilt: 240°
  • Nozzle: Ø45 mm

DUAL DRIVE:

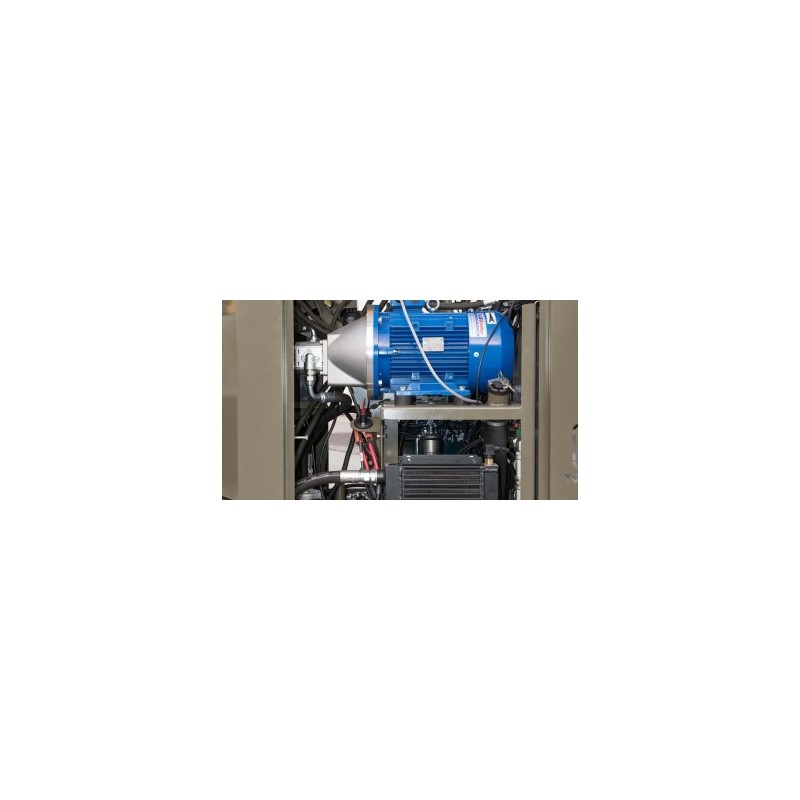

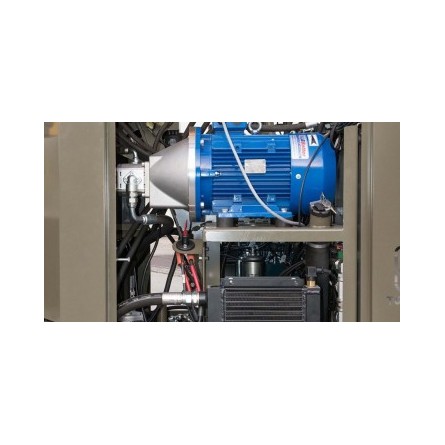

  • Electric: 7.5 kW
  • Diesel: 18.5 kW
  • Control: Radio/wired

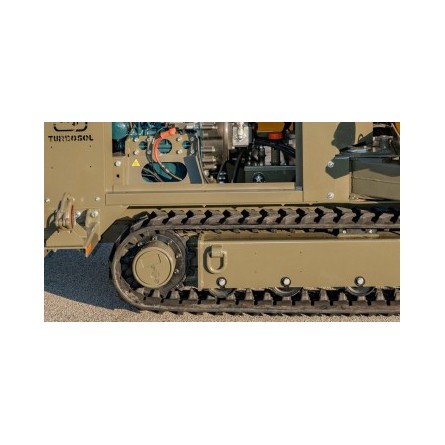

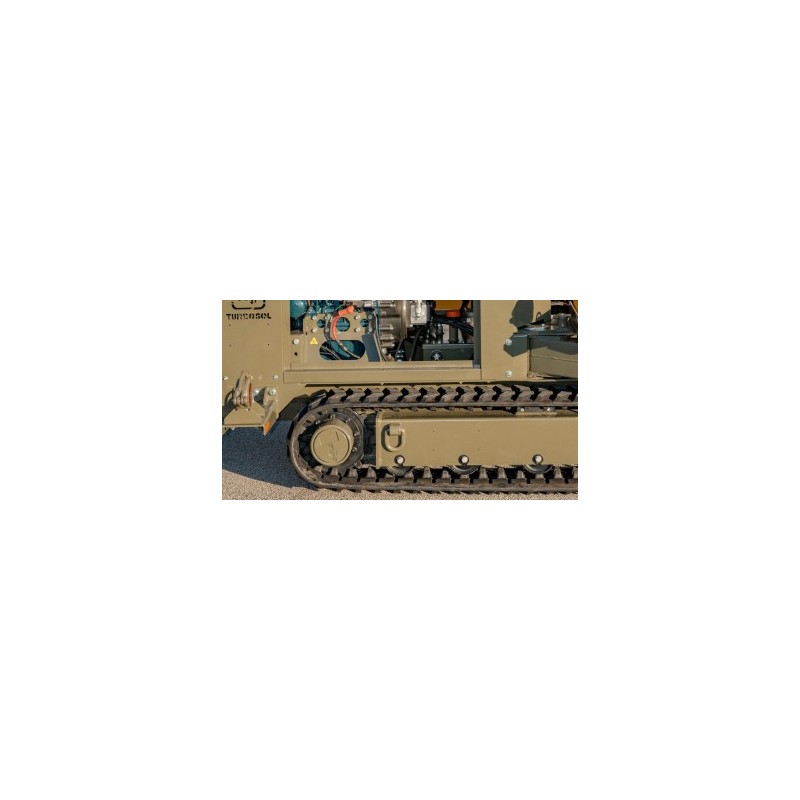

TRACKED TRANSPORTER:

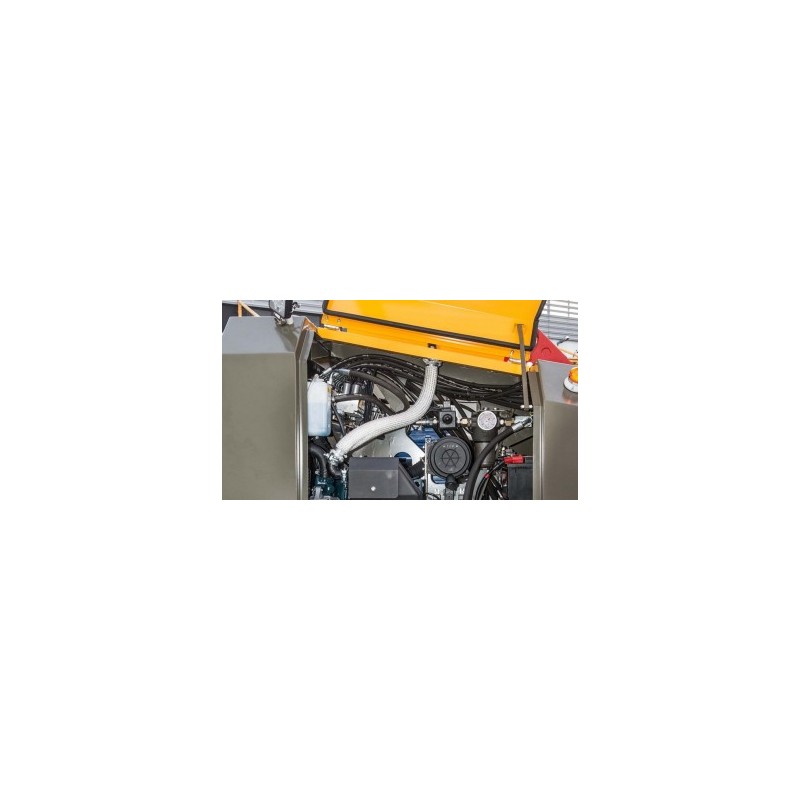

  • Engine: Kubota – 3-cylinder, 18.5 kW – Tier 4 / Stage V
  • Drive system: Hydrostatic
  • Transmission: 2-speed
  • Speed: 1.5 km/h – 3 km/h
  • Braking system: Automatic parking brake
  • Steering system: 2 rubber tracks
  • Stabilisers: 4 hydraulic stabilisers
  • Work lights: 4 x 15 W LED spotlights
  • Warning light: Orange (rotating beacon type)
  • Battery: 12 V / 77 Ah
  • Fuel tank capacity (diesel): 43 l
  • Hydraulic oil tank capacity: 46 l
  • Dimensions: 410 x 120 x 210 cm
  • Weight: 2,210 kg
