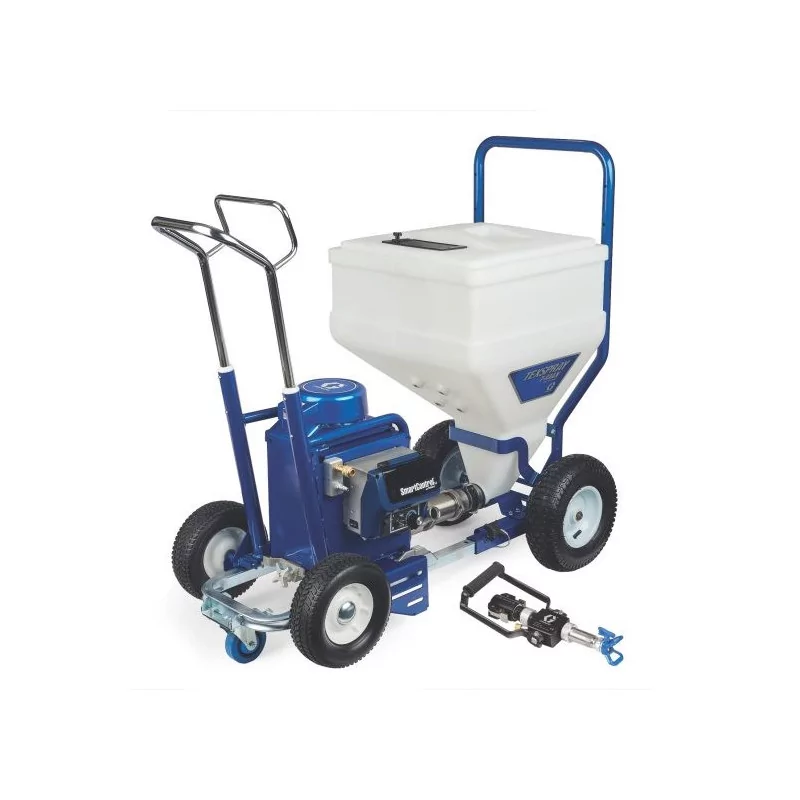

T-MAX 657 GRACO spray unit

For spraying: fillers, finishing coats, gypsum plasters, decorative plasters and bituminous waterproofing materials.

The Graco T-Max 657 unit is an excellent device for spraying all types of fillers (both loose and ready-made) and other decorative materials. The unit allows for even application to the surface without unnecessary waste, which results in significant material savings. Spraying is carried out without the use of air or, in the case of decorative materials, with the use of an external compressor.

Advantages of the Graco T-max 657:

• perfectly smooth finish,
• significantly less waste, up to 30% savings compared to manual work
• possibility of spraying with a hose up to 30 metres long,
• spraying can be carried out throughout the entire house without the need to move the device and material
• airless or air-assisted spraying,
• possibility of applying almost all types of finishing coats without a compressor
• application of decorative materials using an external compressor
• Modular technology that is perfect for both home and field work, even if it requires working on higher floors.
• Professional-quality finish. You will be surprised by the high quality of the finish of the applied material and the reduced amount of material waste
• Balanced design for easy movement, even when fully loaded with material
• Front swivel wheel lock option.
• 65-litre hopper
• Funnel-shaped hopper design for easy material flow.
• Can be fitted with Graco's Vibra-Flo™ system
• Can be fitted with a Graco bag press.

Comfort and efficiency of the Graco T-max 657 unit:

• T-Max™ makes your work much more comfortable and saves up to 30% of your time compared to conventional application methods. When using this innovative device, you will soon notice that it not only makes the work easier for one person, but can also be easily operated by a team of three people, allowing you to apply over 500 m² per day.
• Hopper - 90-litre hopper-shaped tank for easy material flow.
• Hose - Extremely light and flexible. To handle larger jobs, the quick-connect camlock™ system allows you to safely extend the hose up to 30 metres by hand, without the need for additional tools. This allows you to apply material in a two-storey house without moving the T-Max™ device.
• Lance - Quick and clean opening/closing eliminates splashing. The horizontal design provides optimal material flow, eliminating material jams. Very lightweight and extremely easy to use.

Technical parameters:

• Max. working pressure - 65 bar
• Max. nozzle size - 0.061
• Max. capacity (depending on material density) - 7.2 l/min.
• Tank capacity - 90 litres
• Weight (including hose and lance) - 73 kg
• Max. hose length - 30 m
• Motor power - 0.9 kW.

Equipment:

• spray lance
• 10-metre 1" material hose + 3 m 3/4" whip tip
• material filter with 18 mesh screen
• 30 mesh material filter
• airless spray kit with RAC X guard and RAC X HDA651 + HDA655 nozzles
• tool box.
