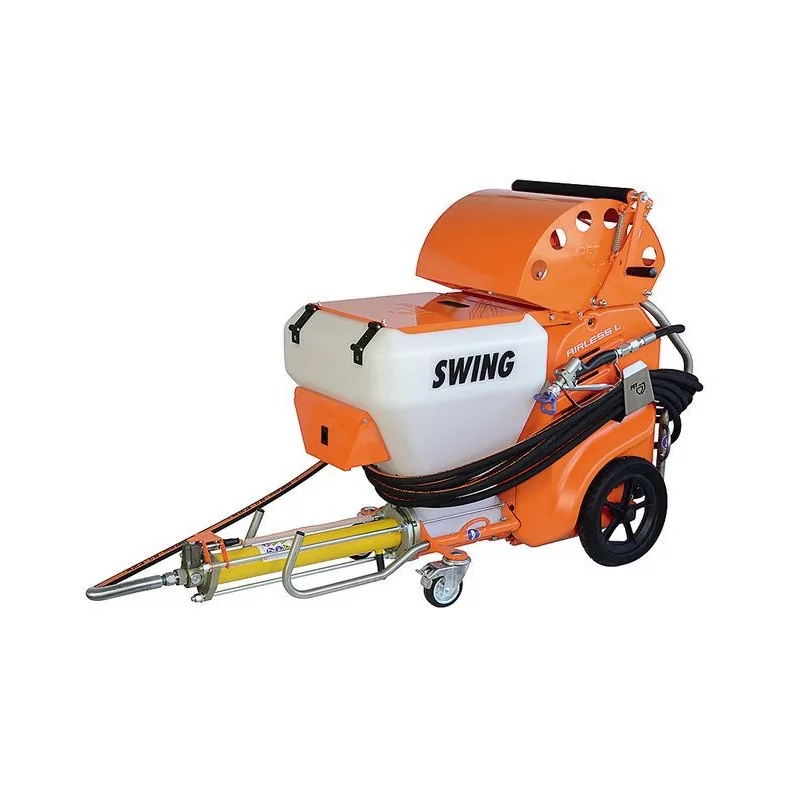

PFT SWING L FC-230V airless P – version with bag press

Allows you to conveniently apply almost all paste-like materials to walls and ceilings. Enables faster and more economical completion of projects ranging from home walls to professional buildings, thanks to Airless technology with screw pumps.

---

Application:

• Paste-like fillers – in airless technology
• Plaster mortars after converting the device into an air spray kit (screw pump, gun, hose, compressor)

---

Advantages:

• Low noise emission
• More intensive use of the machine – more areas of application
• Lower operating costs
• Easy operation and cleaning
• Wear parts can be replaced independently, without the need for service visits
• Large rear wheels
• Can be transported in a station wagon

---

Technical data:

• Capacity: *0-6.5 l/min
• Pumping range: *30 m at DN12
• Power supply: 230V, 1Ph, 50Hz, 3kW
• Drive: 3kW 0-280 rpm
• Sensor with digital operating parameter display
• Operation and control: smooth capacity adjustment with a potentiometer
• Tank capacity: 70 litres

*Guideline values depending on material quality, consistency, pump version, pump condition, delivery hose diameter and delivery height.

---

Dimensions:

• Filling height: 700 mm
• Tank capacity: 70 litres
• Length/width/height: 1,430/500/720 mm
• Total weight: 110 kg

---

Equipment:

• Stator/rotor: 306 airless 6.5 l/min 140 bar
• Mortar hose: RONDO airless DN12 – 20 m
• Spray gun: In Line Texspray – nozzle 541
• Connection cable: 3 x 1.5 mm², BLU 2-16 A - 5 m
• SWING airless bag press

Catalogue number: 00451335

Warranty: 12 months
