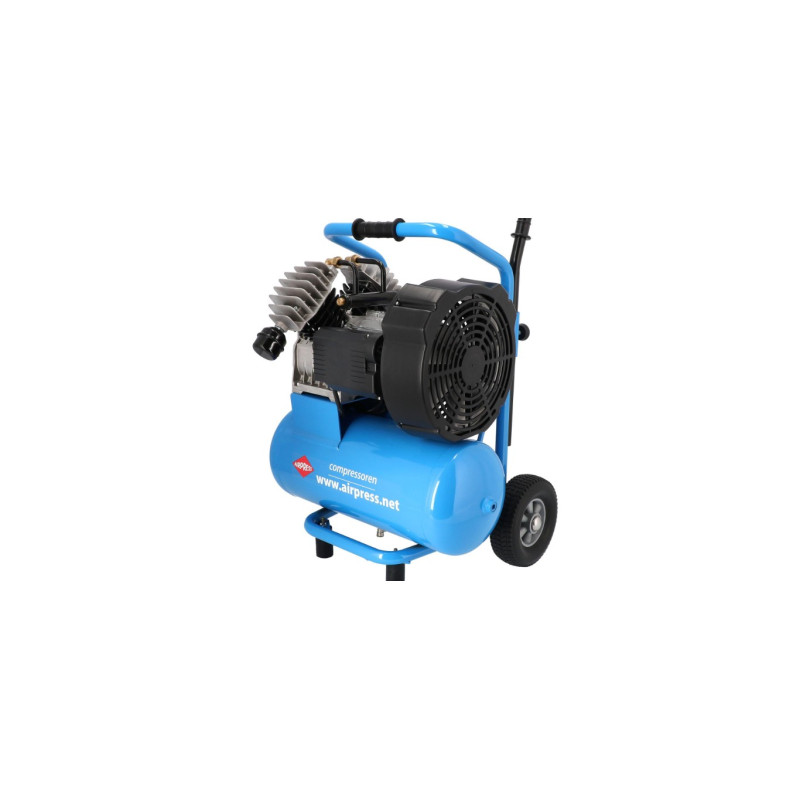

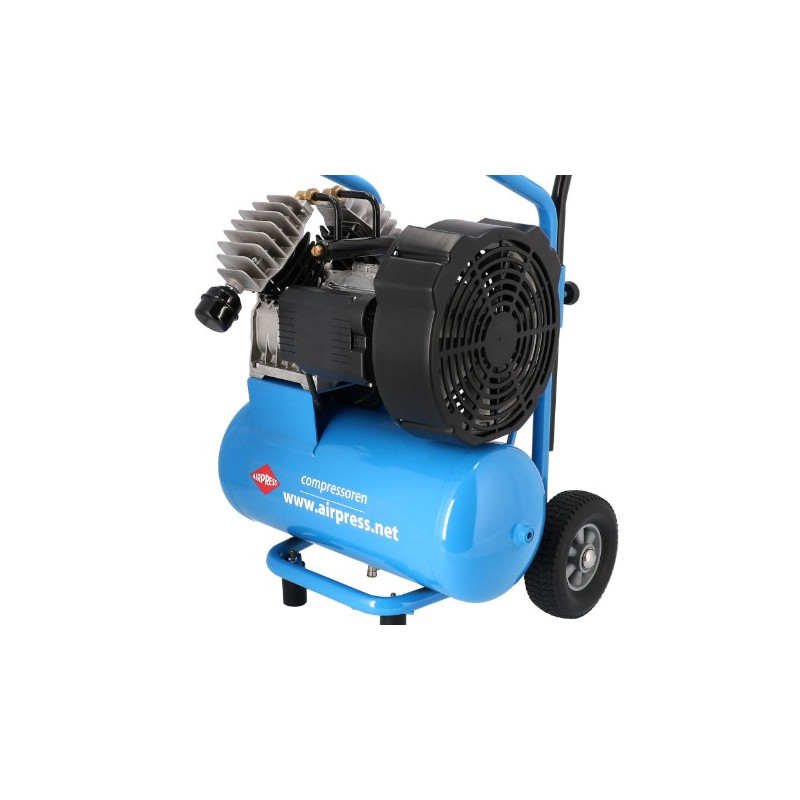

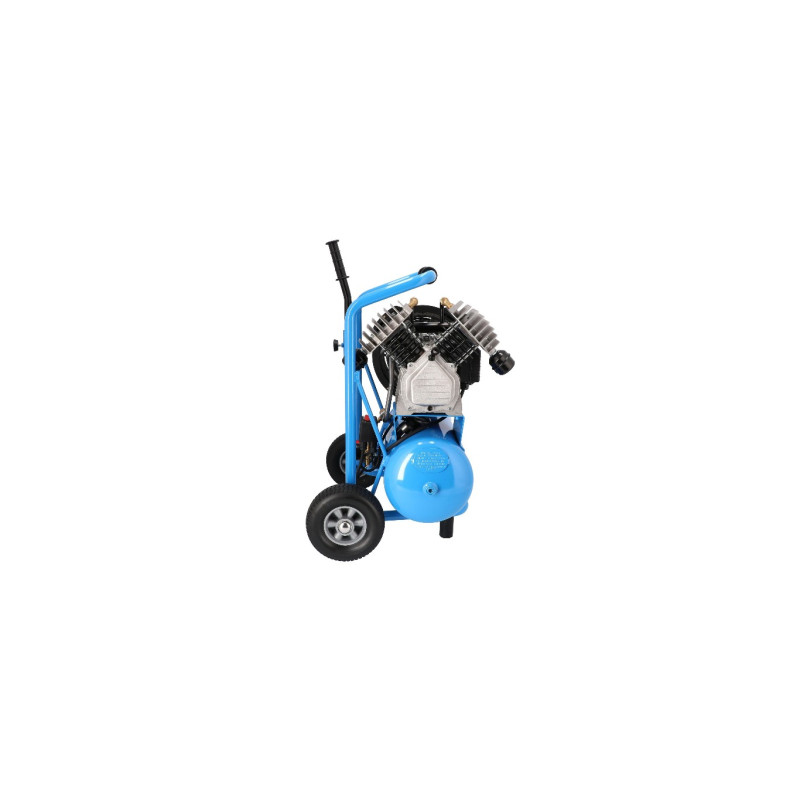

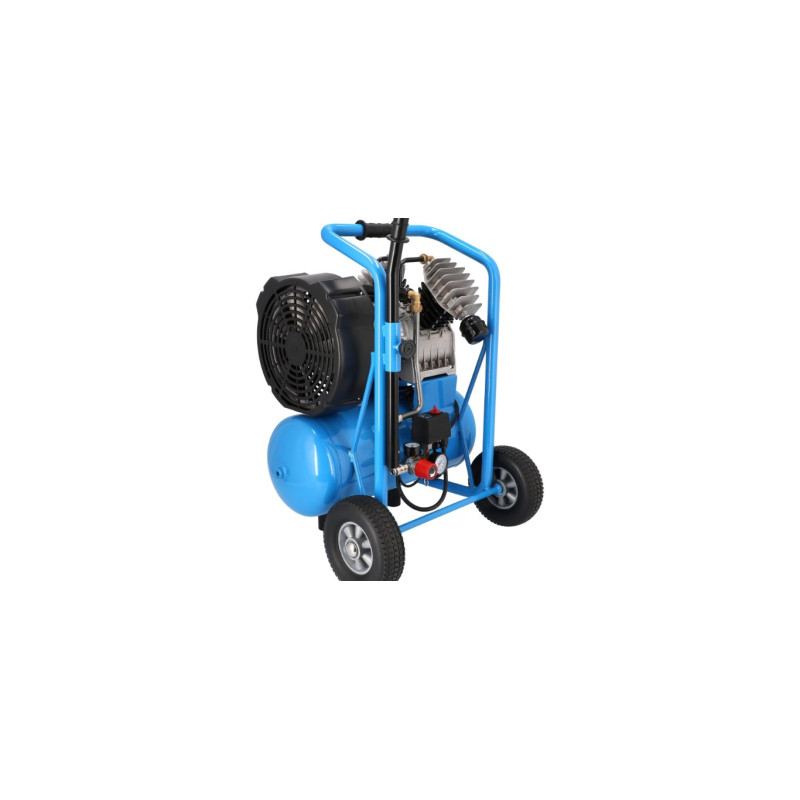

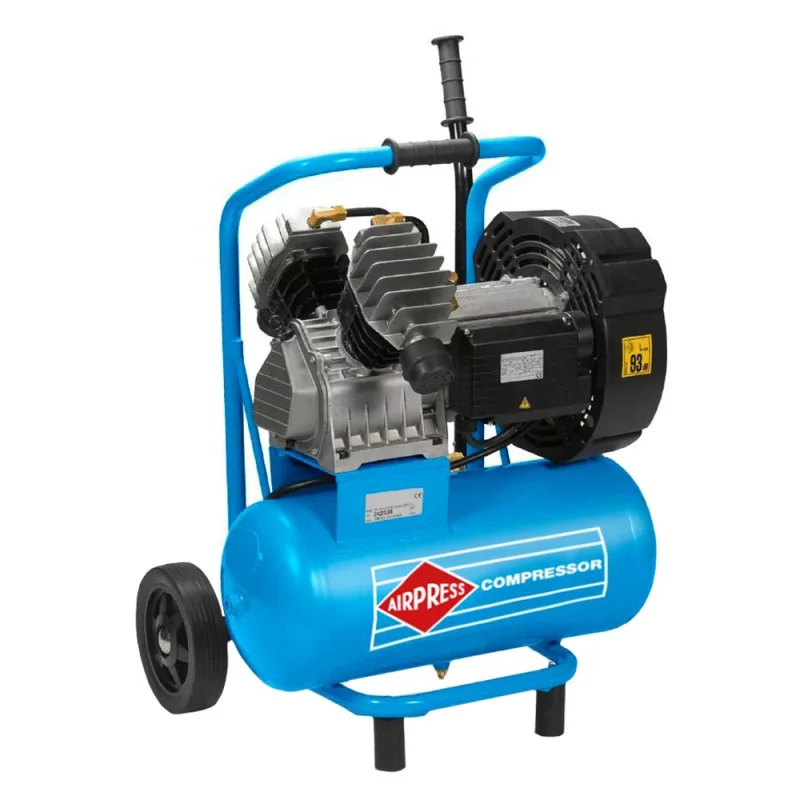

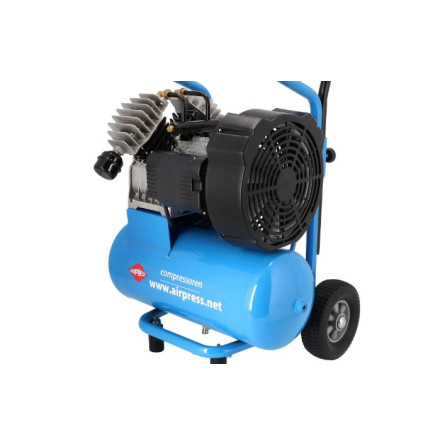

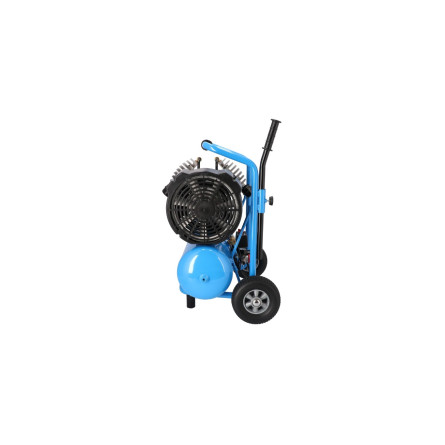

LM 25-410 AIRPRESS piston compressor

Mobile compressor with high performance - 410 l/min and power supply - 230 V. Dedicated to spraying equipment in construction. AIRPRESS Blue Series compressors are portable devices for specialised applications. The range includes oil-free compressors, silenced compressors and compact compressors with a maximum pressure of up to 10 bar. They can operate in cycles of 60% - 40% (36 min/1h compression time - rest time) for a maximum of 12 hours per day. Intended use: construction, car workshops, small industrial plants.

Technical parameters:

• Suction capacity: 410 l/min
• Tank capacity: 25 l
• Engine power: 3.0 HP / 2.2 kW
• Working pressure: 8 bar
• Maximum pressure: 10 bar
• Number of cylinders: 2
• Number of compression stages: 1
• Rotation speed: 1400 rpm
• Power supply: 230 V / 50 Hz / 1 Ph
• Dimensions: 60 x 58 x 82 cm
• Weight: 48 kg

The greatest advantages of AIRPRESS compressors include:

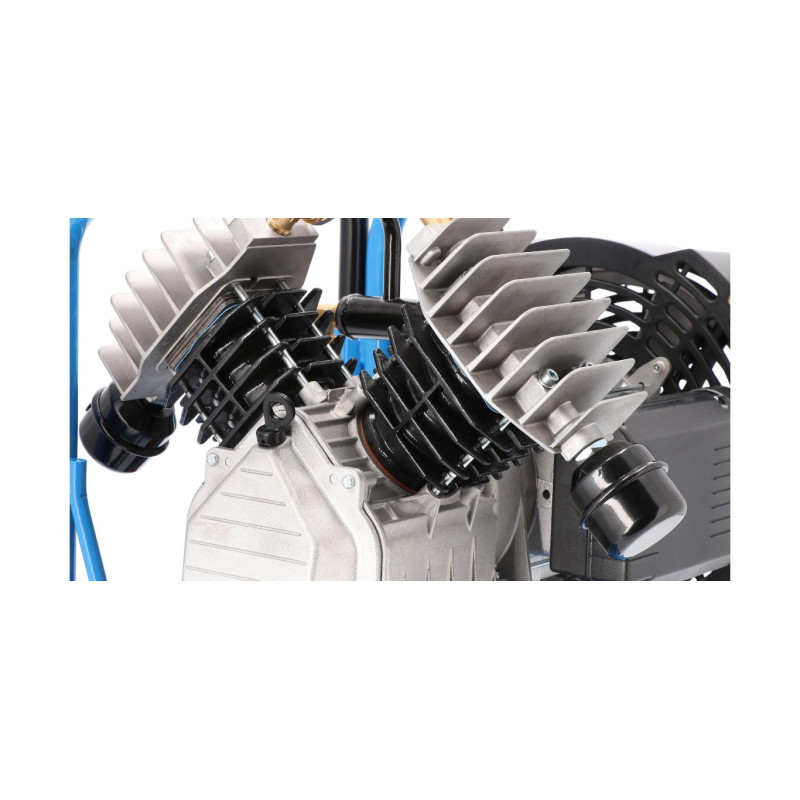

• efficient compressor pump cooling system (lower compressed air temperature, longer compressor service life)
• compressor pump production technology based on automotive industry production technology
• easy oil level control
• easy access to spare parts for 20 years from the date of manufacture
