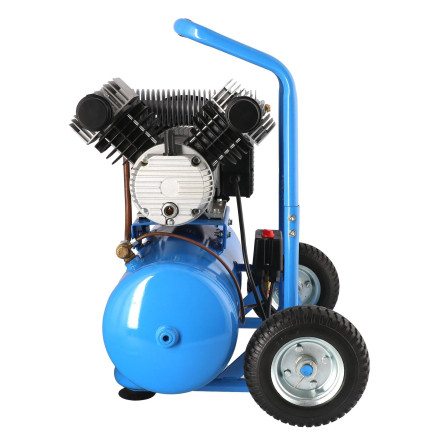

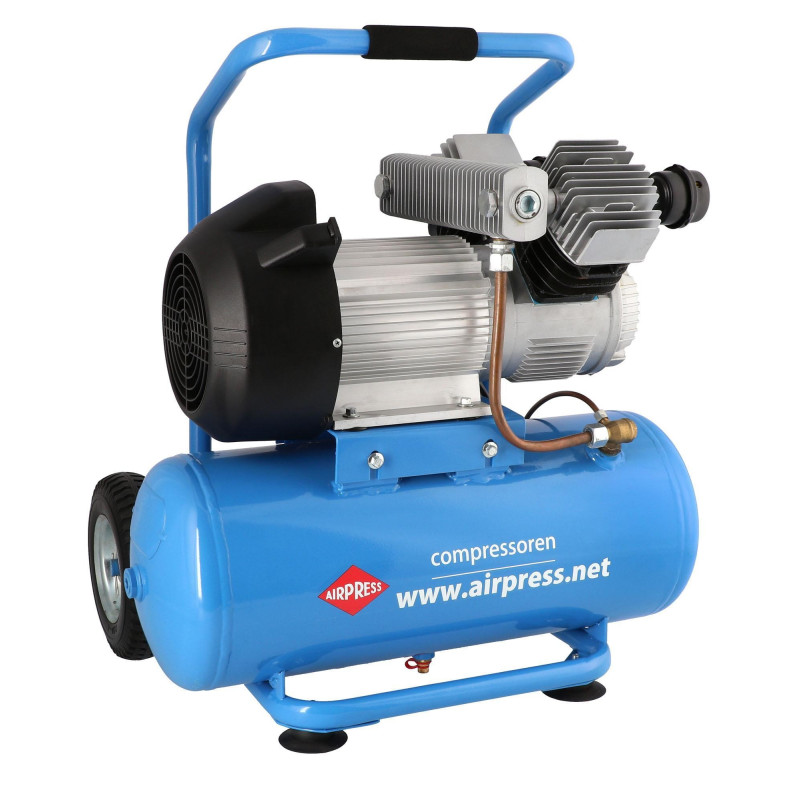

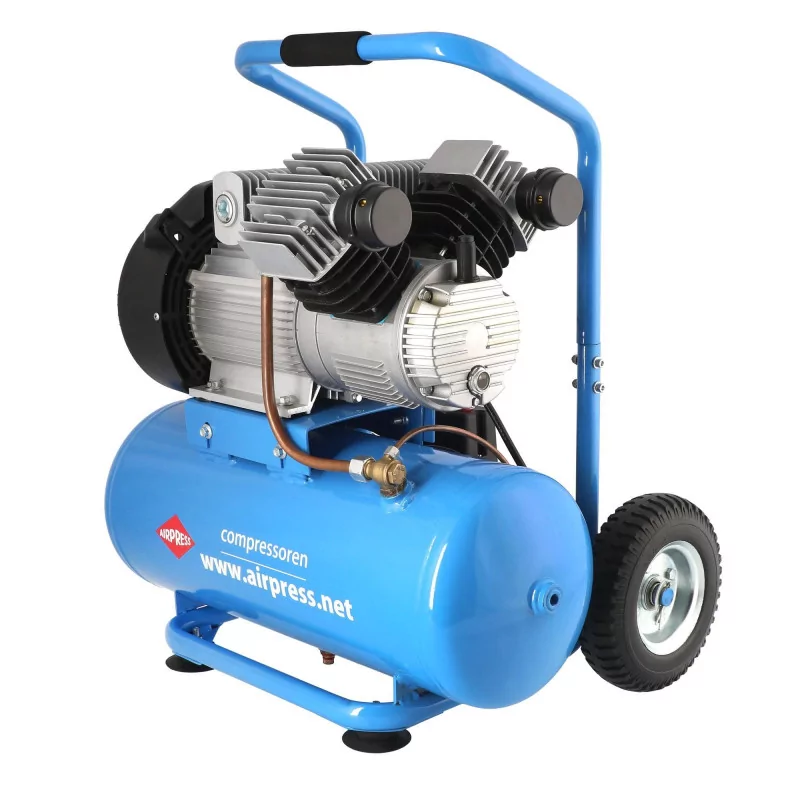

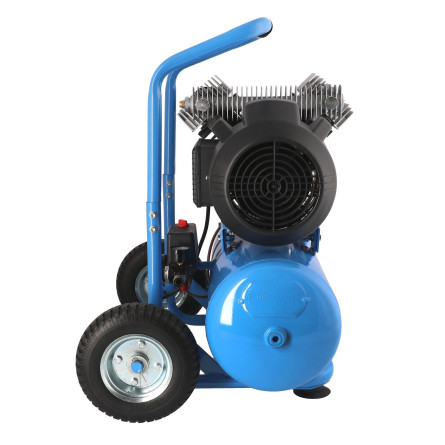

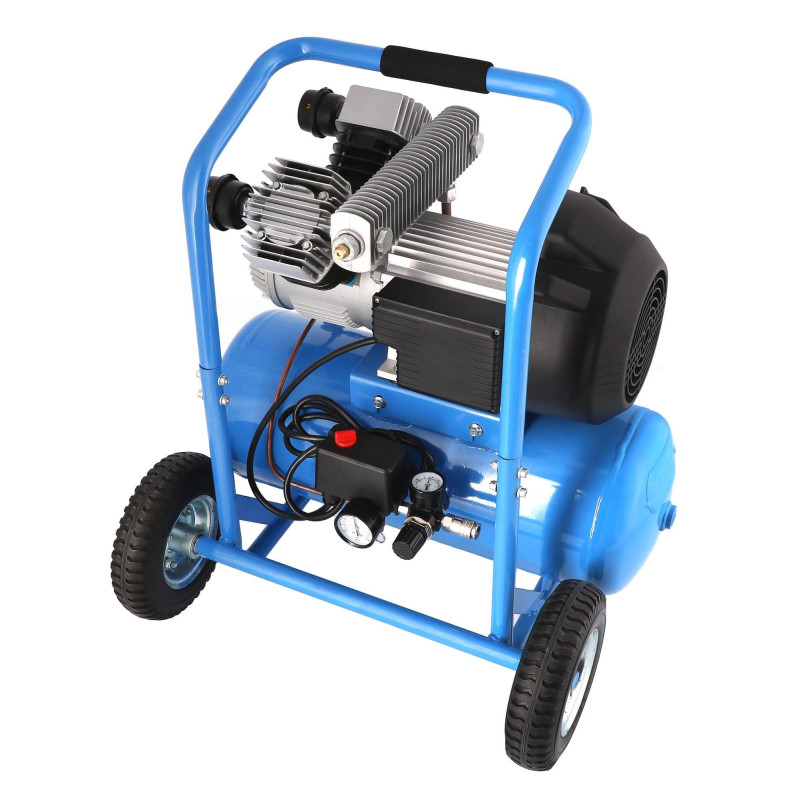

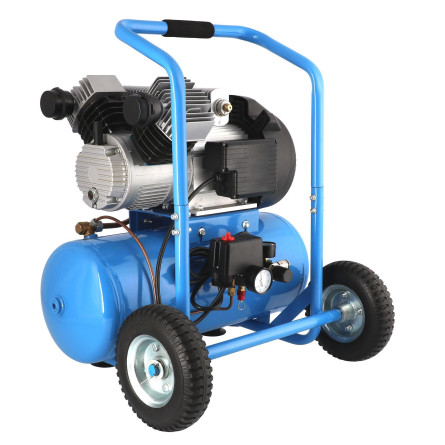

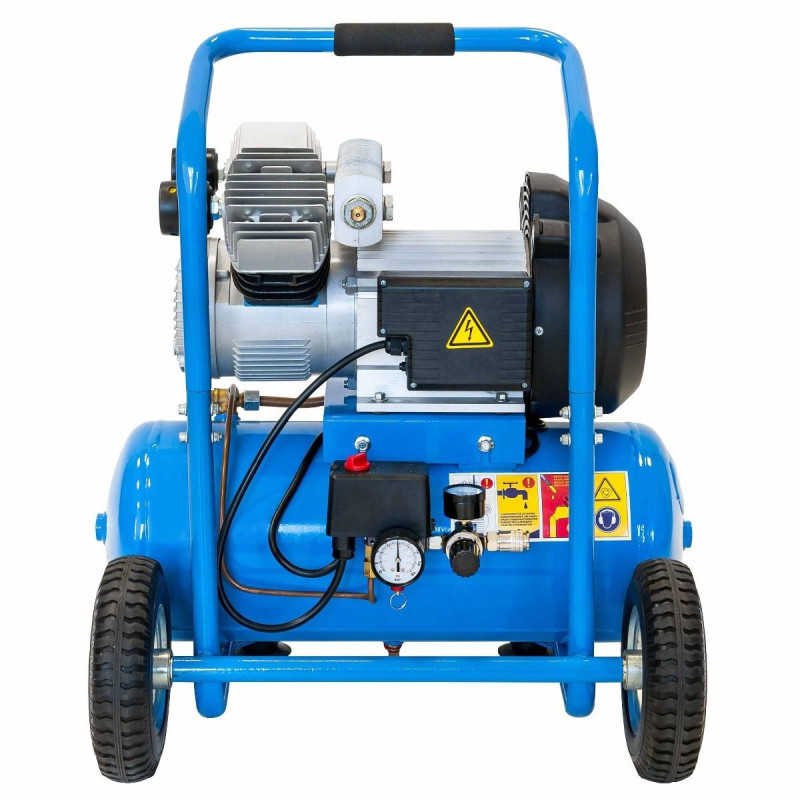

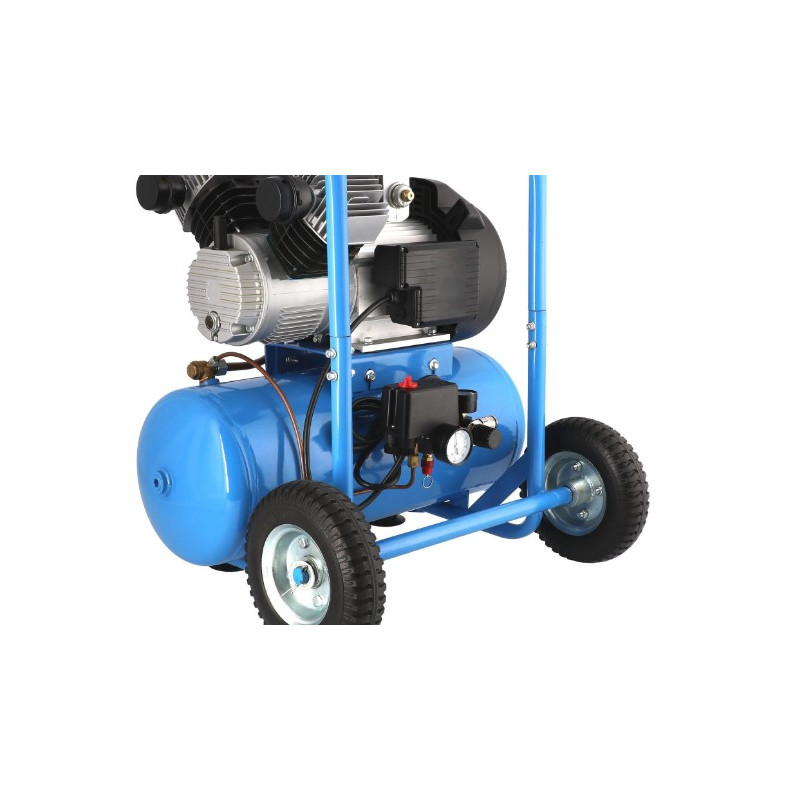

LM 25-350 AIRPRESS piston compressor

Mobile compressor with high performance – 350 l/min and power supply – 230 V. Designed for spraying equipment in construction.

AIRPRESS Blue Series compressors are portable devices for specialised applications. The range includes oil-free compressors, silenced compressors and compact compressors with a maximum pressure of up to 10 bar. They can operate in cycles of 60% - 40% (36 min/1h compression time - rest time) for a maximum of 12 hours per day. Intended use: construction, car workshops, small industrial plants.

The greatest advantages of AIRPRESS compressors include:

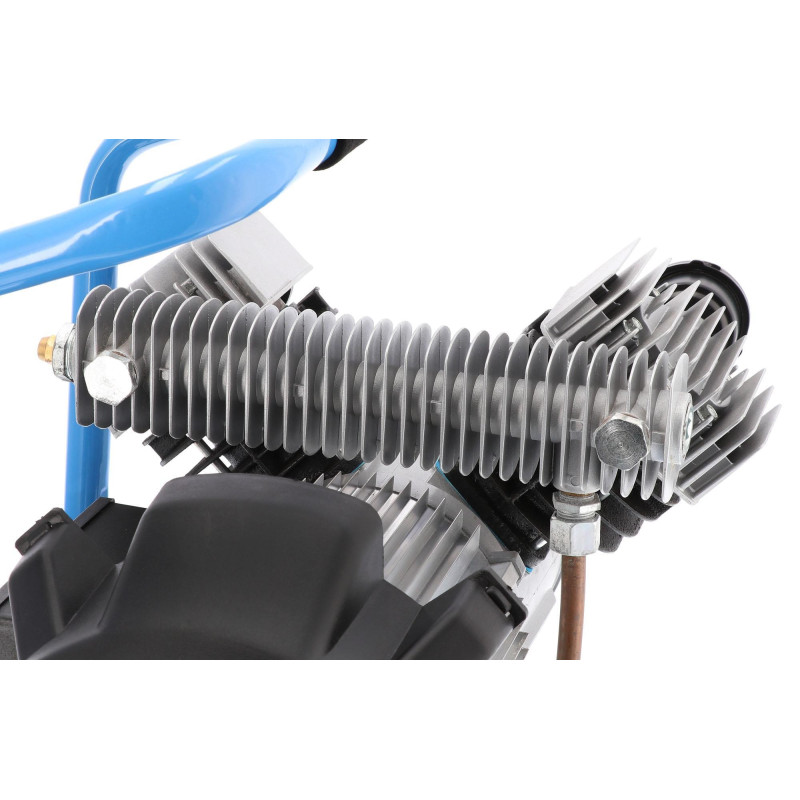

• efficient compressor pump cooling system (lower compressed air temperature, longer compressor life)

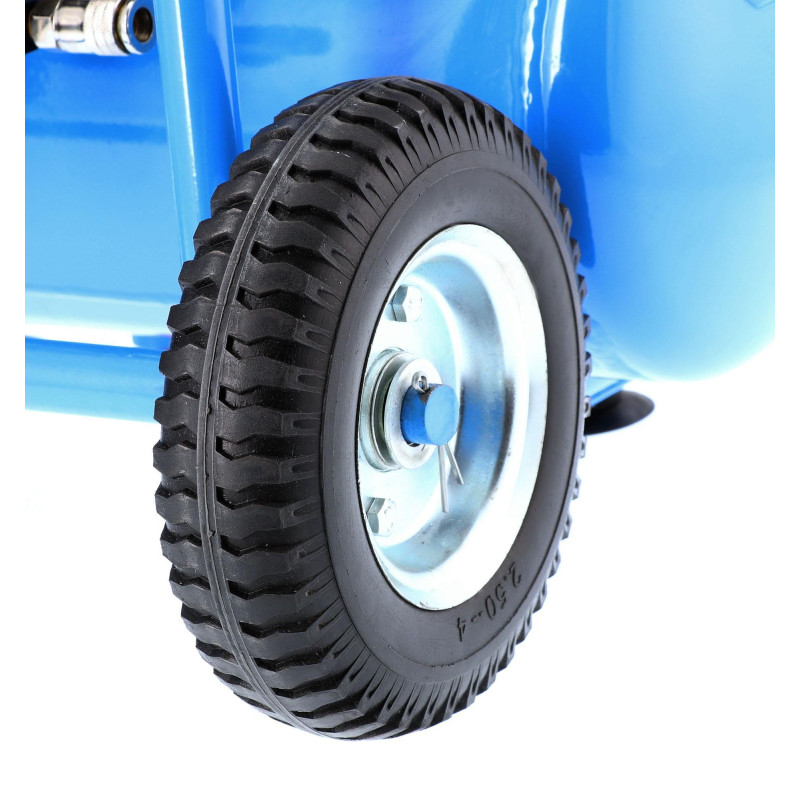

• pumped wheels for easy transport on construction sites
• compressor pump production technology based on automotive industry production technology
• easy oil level control
• easy access to spare parts for 20 years from the date of manufacture

Technical parameters:

• Type: piston compressor
• Suction capacity: 350 l/min
• Tank capacity: 25 l
• Engine power: 3.0 HP / 2.2 kW
• Working pressure: 6 bar
• Maximum pressure: 8 bar
• Number of cylinders: 2
• Number of compression stages: 1
• Rotation speed: 1480 rpm
• Noise level DB(A): 96
• Power supply: 230 V / 50 Hz / 1 Ph
• Dimensions: 63 x 54 x 70 cm
• Weight: 50 kg
