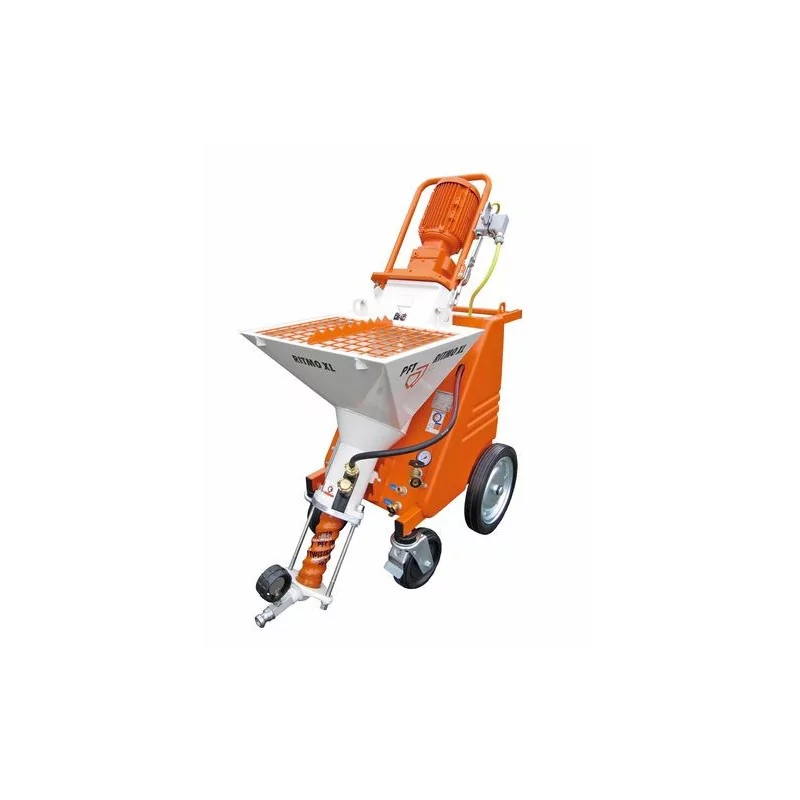

PFT RITMO XL 400 V plastering machine
Compact plastering unit with a 400 V three-phase power supply. Specially designed for pumping, spraying and applying dry and wet mortars suitable for machine application, paste-like materials and many others with a grain size of up to 7 mm.
zł28,292.68 tax excl.
zł34,800.00 tax incl.
zł34,800.00 tax incl.
Available quantity: 0
PFT RITMO XL plastering machine - 400V
Compact plastering unit with a 400 V power supply. Specially designed for pumping, spraying and applying dry and wet mortars suitable for machine application, paste-like materials and many others with a grain size of up to 7 mm.
The pumping capacity can be adjusted as required by quickly changing the pump. Pneumatic filling from a silo using a silo loader allows for the optional use of a blow-off cover. The device can be broken down into three modules.
---
For all factory-made dry mortars, such as:
- Machine-applied gypsum plasters
- Lime-gypsum plasters
- Cement plasters
- Lime plasters
- Lime-cement plasters
- Masonry mortars
- Insulating plasters
- Mortars for filling gaps
- Reinforced and adhesive mortars
- Self-levelling screeds
- Self-levelling fillers
---
Advantages of the device:
- Version with 400V three-phase electric drive
- Stable and compact modular design
- The device is only 70 cm wide
- Can be used universally for various tasks and materials
- Can be used with different pumps
- High feeding capacity
- Easy to operate and maintain
- Easy and quick cleaning thanks to the rubber mixing zone
- Variable filling height from 85 to 101 cm
- Disassembly and transport can be carried out by one person, without the need for tools
- Integrated air compressor
- Possibility of connecting an additional mixer with aeration: PFT ROTOMIX or PFT ROTOQUIRL
---
Basic equipment:
- 5.5 kW gear motor, 400 rpm, with swing-off switch
- Integrated control unit
- TWISTER D 6–3 pump unit with mortar pressure gauge
- Material hopper with protective grid
- RONDO 25 mm, 10 m, hydraulic connection, with couplings
- Mixing pipe cleaner for D and R pumps, galvanised
- BIONIK RITMO XL cleaning roller, galvanised
- Spray nozzle 25 mm, 14 short rotating nozzle
- Water-air hose 1/2", 11 m complete with connectors
- LK-250 air compressor with pressure switch
- Inspection element part 25V with Geka connector
- Tool bag
- Operating instructions
---
Technical data:
- Drive - Gear motor: 5.5 kW, 400 rpm at 10-50 Hz
- Connection data: 400 V
- Rotor/Stator: SD 6-3 slimline
- Pump capacity: approx. 6 - 60 l/min
- Operating pressure: max. 30 bar
- Feed distance: 15 m (mortar) / 50 m (filler)
- COMP P-200 air compressor: 230 V, 0.5 kW, 200 l/min, max. 3.4 bar with pressure cut-off
---
Dimensions:
- Filling height: 850–1,010 mm
- Tank capacity: 70 l
- Length: 1300 mm
- Width: 700 mm
- Height: 1400 mm
- Total weight: 232 kg
Catalogue number: 00186478
Warranty: 12 months
