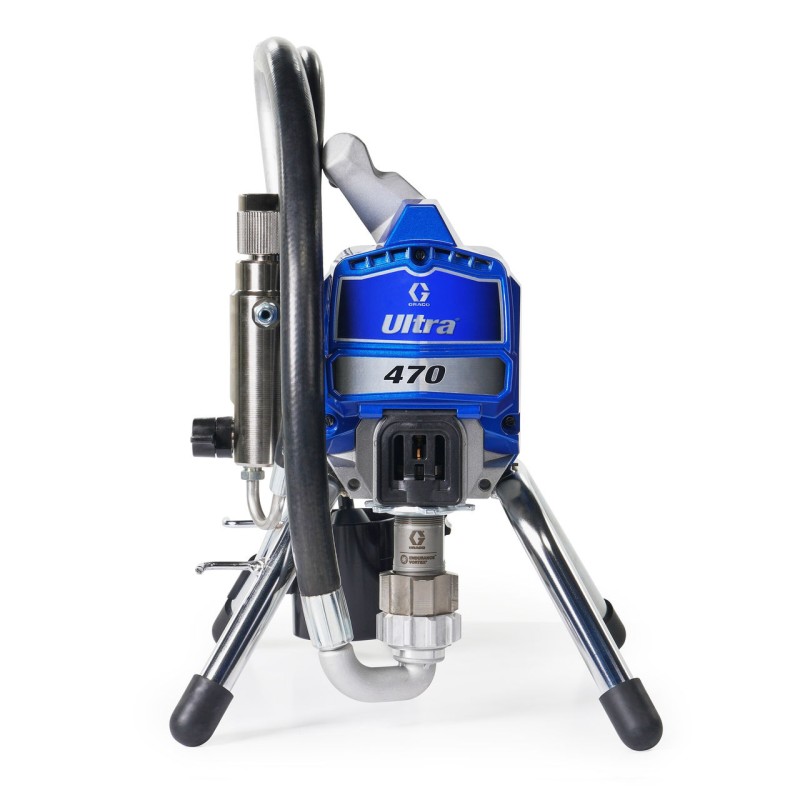

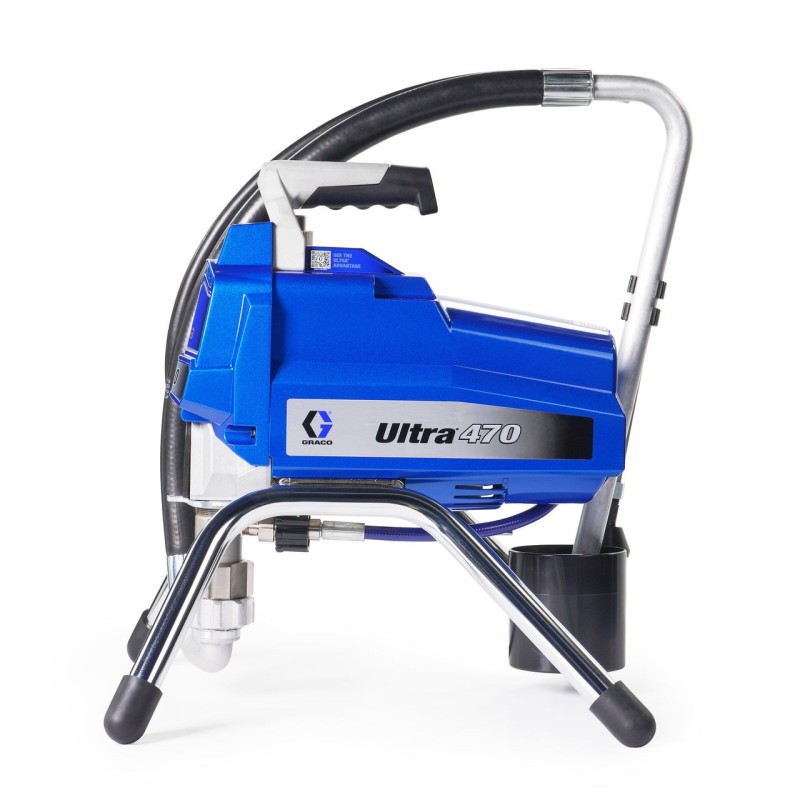

GRACO Ultra 470 Standard Spray Paint System

The Ultra 470 electric hydrodynamic spray unit is the ideal upgrade for contractors, offering FastFlush, WatchDog and SmartControl, which save time, reduce wear and tear, and deliver a superb hydrodynamic finish whilst maintaining excellent performance levels.

Lightweight design, unrivalled performance. Designed to maximise productivity and deliver unrivalled reliability, Graco’s Ultra 450 electric hydrodynamic sprayers offer features that minimise downtime on a lightweight, high-performance platform.

The lightest professional sprayer with full performance

• Lightweight design for easy transport to any job site
• Compact dimensions save valuable space in your vehicle

Best-in-class performance and durability

• The SmartControl system monitors and regulates performance, ensuring a perfect hydrodynamic finish
• The Endurance Vortex pump allows you to triple the volume of fluid sprayed and stay ahead of the competition
• The maintenance-free brushless motor ensures reliable operation every time

Maximum uptime thanks to the fastest on-site service

• The ProConnect replacement system allows pumps to be replaced on site in a matter of minutes
• Twice the nozzle life with up to 50 per cent reduction in overspray thanks to RAC X SwitchTip low-pressure nozzles
• Rebuild the Contractor PC spray gun in seconds with the ProConnect replacement cartridge

SmartControl system with digital display

• Provides real-time pressure, capacity, operating hours and diagnostic data, ideal for monitoring performance and maintenance

WatchDog pump protection system

• Protects against damage by shutting down the pump when the tank needs refilling

FastFlush cleaning system

• More spraying and less cleaning
• 2x faster cleaning with half the water consumption

Advantage Drive

• Hardened steel gears ensure exceptionally quiet operation and a lifetime guarantee

Durable suction hose with filter and swivel joint

• The Easy Out filter ensures easy maintenance and reduces clogging
• Suction hose with swivel joint for easy access to paint buckets

Durable steel frame

• Thick chrome plating on the steel, resistant to harsh environmental conditions
• The 4-legged stand ensures greater stability

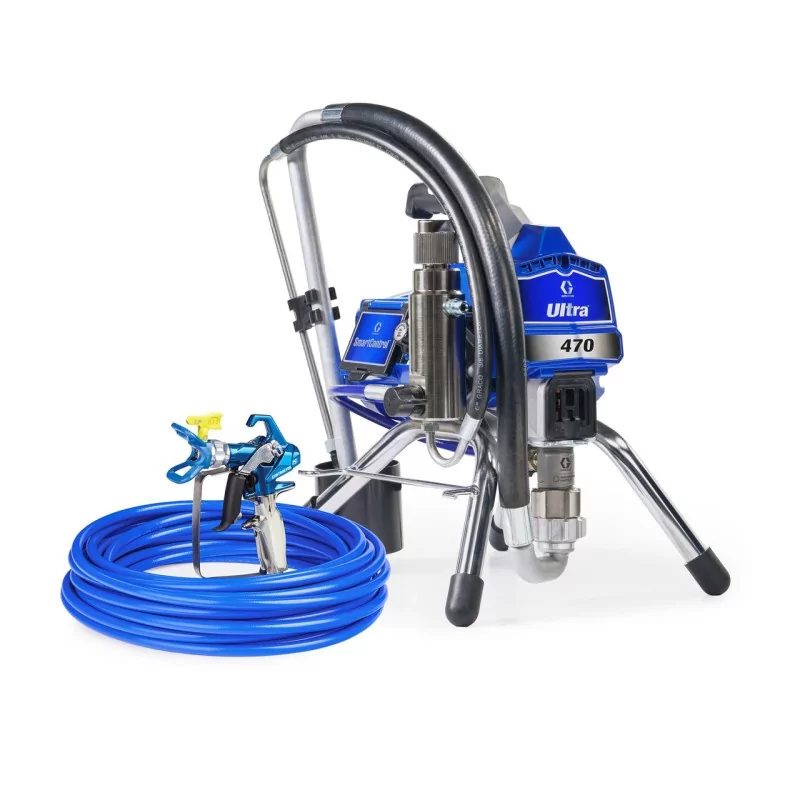

The set includes a spray gun, hose and nozzle

• Contractor PC spray gun, RAC X LP 517 SwitchTip nozzle and BlueMax II 1/4 in X 50 ft hose

Technical specifications

• Overall length (cm): 40.6
• Fluid outlet thread type: NPSM
• Frame configuration: Stand
• Cycle count per gallon: 700
• Maximum flow rate (l/min): 2.3
• Maximum operating pressure (MPa): 22.8
• Maximum operating pressure (bar): 228
• Maximum fluid working pressure (psi): 3,300
• Maximum nozzle size (in): 0.025
• Wet parts material: Galvanised and nickel-plated carbon steel, Nylon, Stainless steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten carbide, Polyethylene, Fluoroelastomer, Urethane
• Minimum generator power (W): 3000
• Model: Ultra
• Voltage (V): 230
• Sound power level (dB(A)): 100
• Series: 470
• Overall width (cm): 34.3
• Type: Airless spray unit
• Included: Contractor PC hydrodynamic spray gun with RAC X LP 517 SwitchTip nozzle, BlueMax II hydrodynamic hose 1/4 in x 50 ft, RAC X HandTite nozzle guard, TSL piston lubricant – 118 ml
• Weight (kg): 12.7
• Overall height (cm): 44.5
• Fluid outlet diameter (in): 1/4
