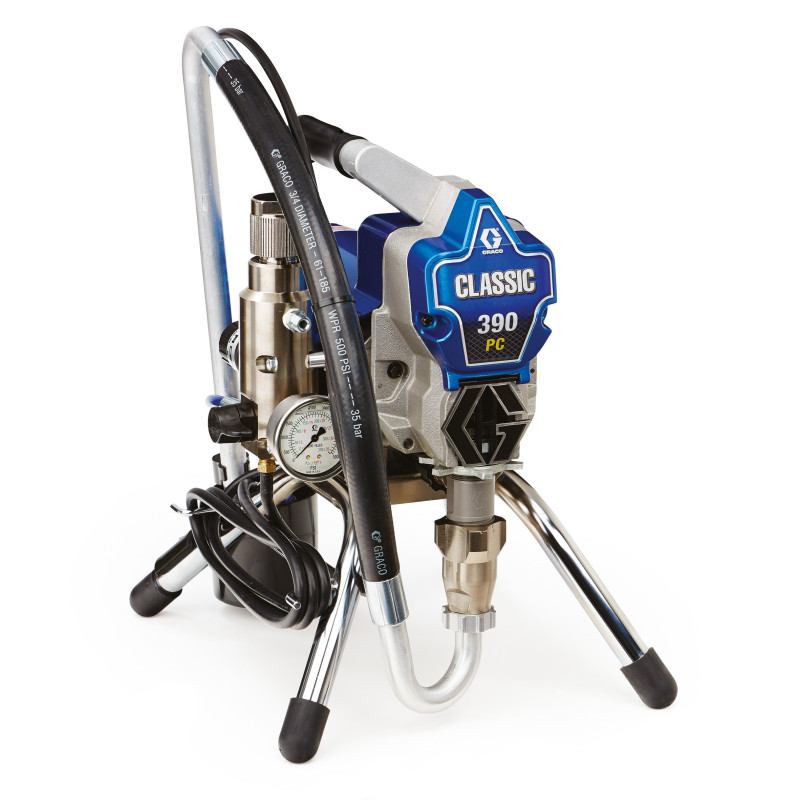

ST-MAX 390 Classic paint sprayer

The promotional set includes an extension of your choice – free of charge!

is a simplified version of the ST-Max PC series sprayer. The new generation of CLASSIC sprayers has been enhanced with ProConnect™ technology. This is a quick and easy pump replacement system that makes these most reliable small electric devices even more usable. The GRACO ST-MAX 390 CLASSIC PC paint sprayer with a brush motor is a spray device designed for novice professionals. It is ideal for work in smaller residential and industrial spaces, but thanks to its greater efficiency and motor power, it has greater capabilities than the ST-MAX 290 model. With Proven Endurance™ technology in all CLASSIC pump models, this device is ideal for professionals who spray a variety of coatings. The CLASSIC has been tested and approved for spraying a wide range of lacquers, acrylics, primers, enamels, varnishes and acrylic interior paints directly from the tank. Easy DIY pump replacement in 3 steps in case of damage. No time or money wasted on pump repairs.

1. Loosen the retaining nut
2. Open the door and remove the pump
3. Disconnect the hose and suction tube

Endurance™ pump - proven and reliable Graco piston pump technology with LongLife-V seal.

QuickAccess™ inlet valve for easy cleaning and debris removal.

Advantage Drive™ - hardened steel gears operate extremely quietly. It is the most durable drive in the industry.

Rotating suction hose - durable, lightweight and rust-resistant design. No tools are required to disconnect the hose, making cleaning and access to the valve ball easy. Easy rotation allows you to reach paint buckets or cans.

Easy-Out™ pump filter - Large filter area reduces the possibility of nozzle clogging and ensures a high-quality finish. Filters that work from the inside out do not deform, allowing cleaning with just a few litres of water. The vertical filter is easily removed together with the cap, eliminating spillage.

Design - Positioned vertically so paint does not spill out of the can. The included large cup holds the suction hose during transport to prevent spills.

Variable pressure control - Position indicator allows for repeatable setting when spraying light or heavy materials.

The CLASSIC device has been tested and approved for spraying a wide range of materials: varnishes, acrylics, primers, enamels, varnishes, acrylic interior paints, solvent-based paints.

Technical parameters:

• Max. pump capacity (l/min.): 1.8
• Max. pressure (bar): 227
• Max. nozzle size: 0.021"
• Motor type: Control™DC TEFC brush
• Motor power (kW): 0.65
• Weight (kg): 15.4

Included:

• GRACO FTX spray gun + 517 nozzle and head
• 15 m Blue-Max hose
• TSL 118 ml piston oil
• set of keys
• user manual
