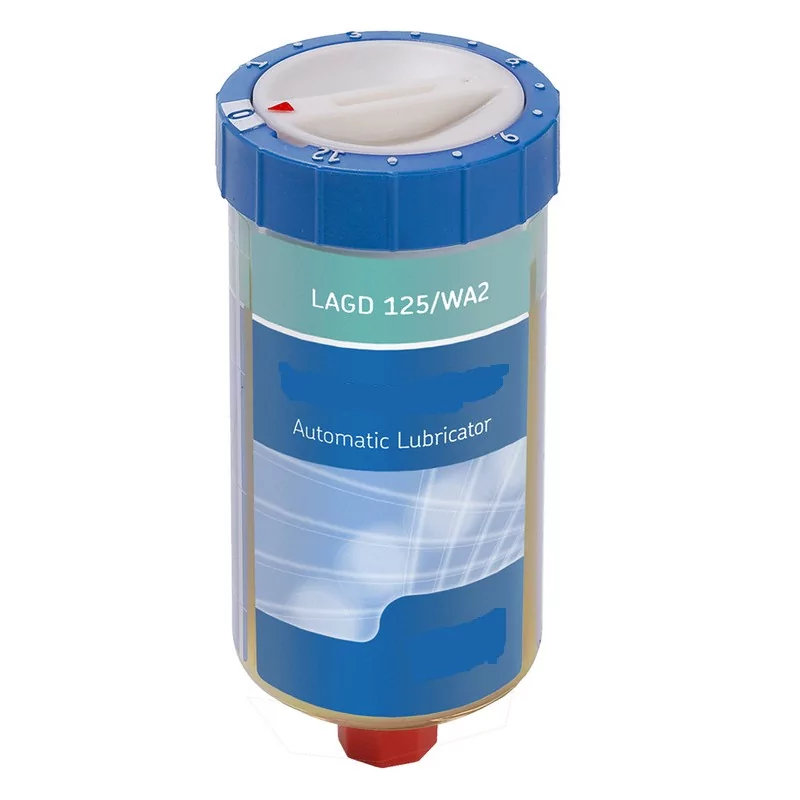

Automatic lubricator - EUROMAIR

Automatic lubricator mainly used in EUROMAIR spray units. The lubricators are delivered ready to use straight out of the box and are filled with one of a wide range of high-quality lubricants. Activation and emptying time setting without the need for special tools allows for easy and accurate adjustment of the lubricant flow.

Features:

• Flexible emptying time setting between 1 and 12 months
• The emptying process can be temporarily stopped or the time setting changed
• Intrinsically safe approval: ATEX approved for zone 0
• Transparent container allows visual inspection of the quantity and dispensing rate of the lubricant
• Compact dimensions for installation in confined spaces
• Available filled with grease and chain oils

Typical applications:

• hard-to-reach and hazardous locations
• lubrication of bearing housings
• electric motors
• fans and pumps
• conveyors
• cranes
• chains (oil)
• lifts and escalators (oil)

Technical parameters:

• Lubricant tank capacity: 125 ml (4.2 US fl oz)
• Rated emptying time: adjustable, 1–12 months
• Ambient temperature range: –20 to +60°C (–5 to +140°F)
• Maximum operating pressure: 5 bar (75 psi) (at start-up)
• Drive mechanism: inert gas-generating gas cell
• Connection thread: R1/4
• Maximum supply line length:
  1. plastic grease: 300 mm (11.8 in)
  2. oil: 1,500 mm (59.1 in)
• Certified intrinsic safety:
  1. II 1 G Ex ia IIC T6 Ga
  2. II 1 D Ex ia IIIC T85°C Da
  3. I M1 Ex ia I Ma
  4. EC type examination certificate: Kema 07ATEX0132 X
• Degree of protection: IP 68
• Recommended storage temperature: +20°C (+70°F)
• Permissible storage period for lubricator: 2 years
• Weight: approx. 200 g (7.1 oz) including lubricant
