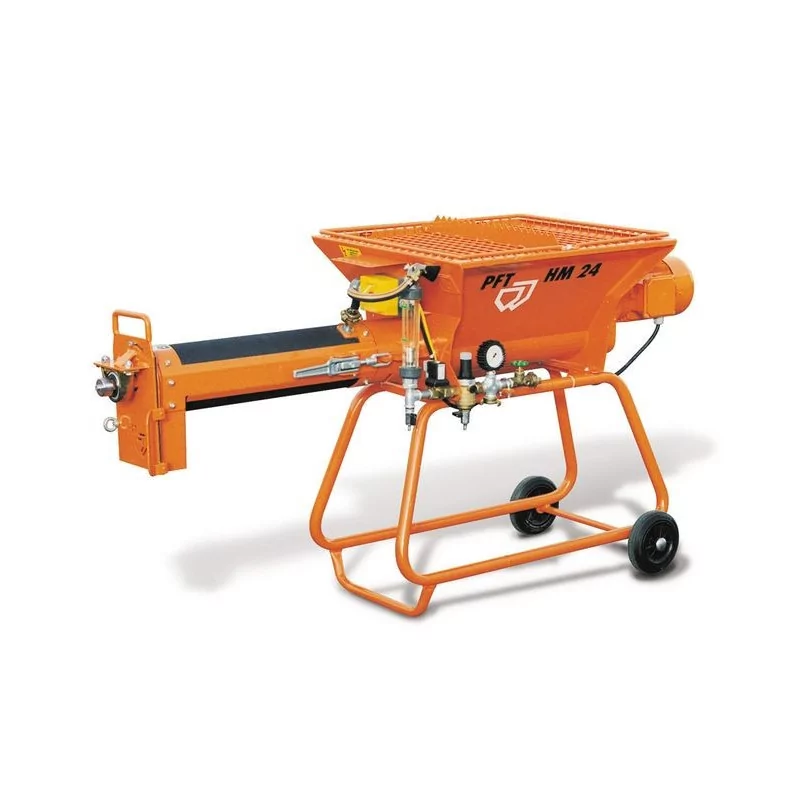

PFT HM24 Flow Mixer – 5.5 kW

The mixer can be used to mix virtually all ready-mixed dry mortars manufactured on a lime and cement basis with a grain size of up to 6 mm. Thanks to PFT's modular technology, each device can be easily converted to the filling method required at any given time: whether the material is delivered in bags, fed from a silo or container, or via a PFT Silomat pneumatic conveying device.

Areas of application:

Fully automatic mixing of all factory-produced dry mortars packed in bags, based on lime and cement with a grain size of up to 6 mm. These include:

• structural plasters
• adhesive mortars in facade insulation systems
• masonry mortars
• high-strength plasters
• cement and insulating plasters
• screed mortars
• levelling compounds
• adhesive mortars
• trowelled, lime and renovation plasters
• mortars for ceramic tiles and grouts.

Advantages:

• Perfect for mixing adhesive mortars
• No permanent material caking
• Improved mixing quality
• Steel mixing chamber
• Can be loaded from a silo using an adapter (item no. 20600500)
• Easy to operate, maintain and clean
• Removable mortar spout
• Valve with pressure reducer

Technical data:

• Drive: 5.5 kW gear motor
• Speed: 292 rpm
• Power supply: 400 V, 3 phases, 50 Hz
• Mixing capacity: 25 - 80 l/min
• Maximum grain size: 6 mm
• Mortar tank capacity: 110 l, 3.5 bags
• Water connection: Geka DN12 (1/2") - working pressure 2.5 bar
• AVO 500 water pump: 400 V, 3 ph, 50 Hz, 0.37 kW

Dimensions:

• Total length: 1870 mm
• Width: 670 mm
• Filling height: 970 mm
• Mortar outlet height: 650 mm
• Weight: 110 kg

Cat. no.: 00010127

Warranty: 12 months
