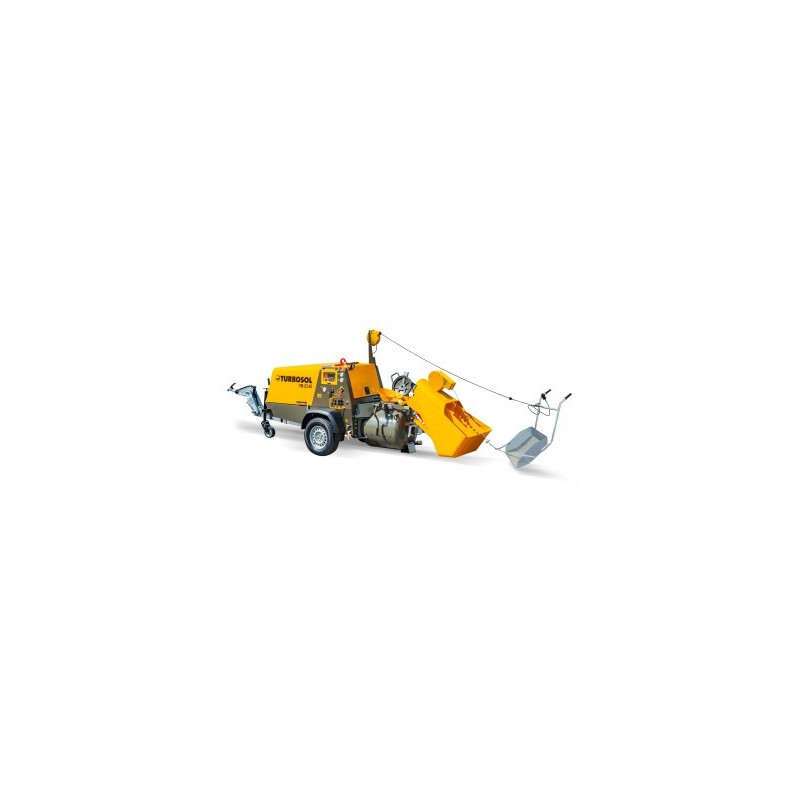

TRANSMAT 27.45 DCBP – TURBOSOL pneumatic feeder

A high-performance mixer for pumping screeds, mortars and concrete, equipped with a liquid-cooled 4-cylinder Perkins engine, reduces operating costs and ensures lower fuel consumption. Innovative solutions ensure high working comfort and make the machine easy to service. The DCBP version has a built-in compressor, hydraulic basket and hydraulic scraper.

Applications:

• semi-dry floor screeds
• insulating screeds based on clay, polystyrene, perlite, vermiculite
• all types of aggregate, i.e. sand, gravel, etc.
• Concrete for grain size max. 30 mm.

Technical advantages:

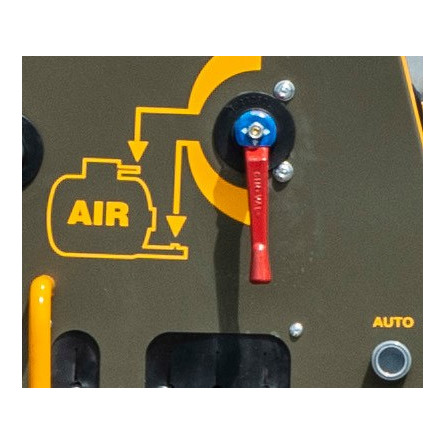

• automatic pumping cycle – the diesel engine idles at the end of each cycle, which reduces fuel consumption and engine wear while maintaining the smoothness of the mixture

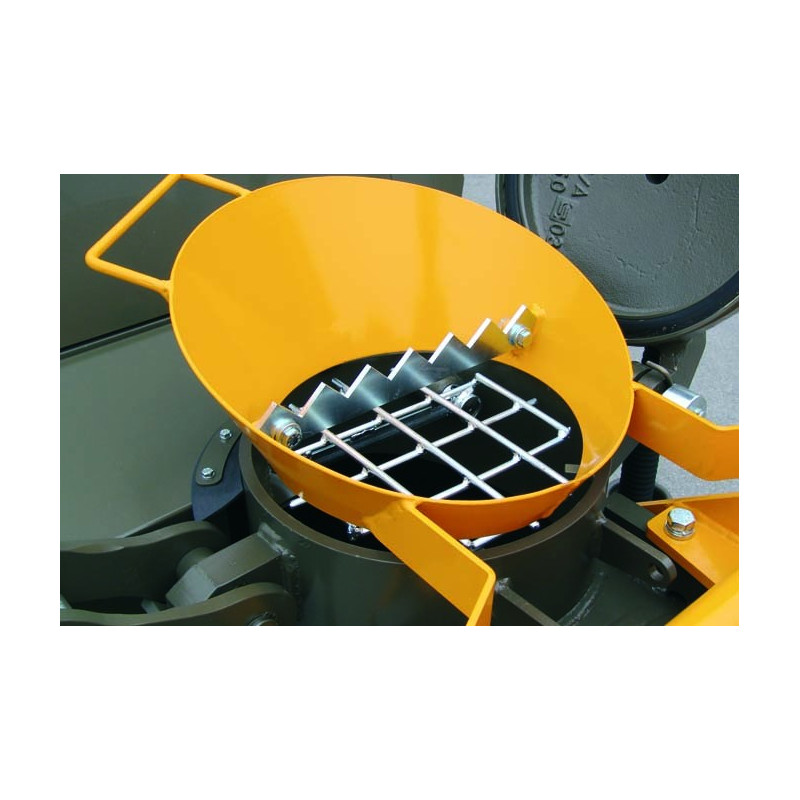

• tank safety grid, which prevents the mixer from starting when raised and, similarly, switches off the mixer when raised.

Technical data:

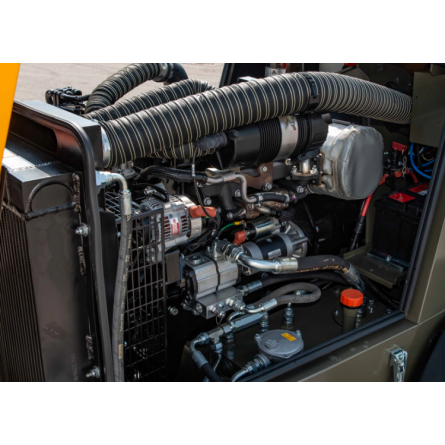

• Liquid-cooled 4-cylinder diesel engine: Perkins 404D22-36.3 kW - 50 HP

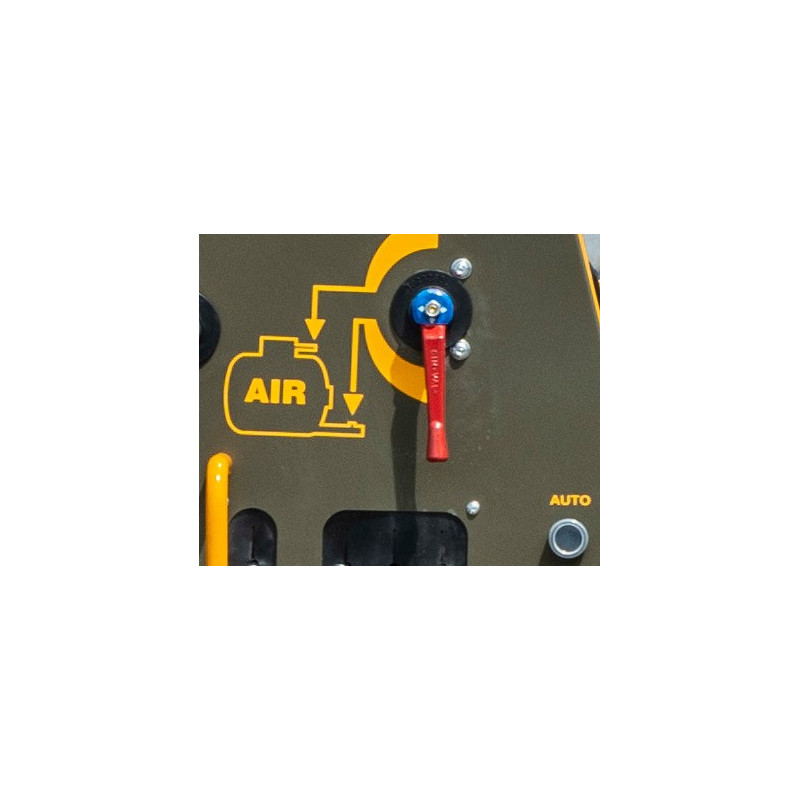

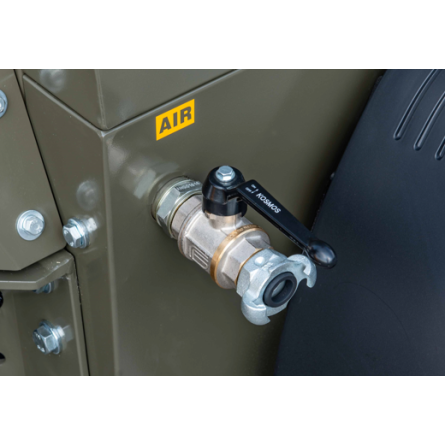

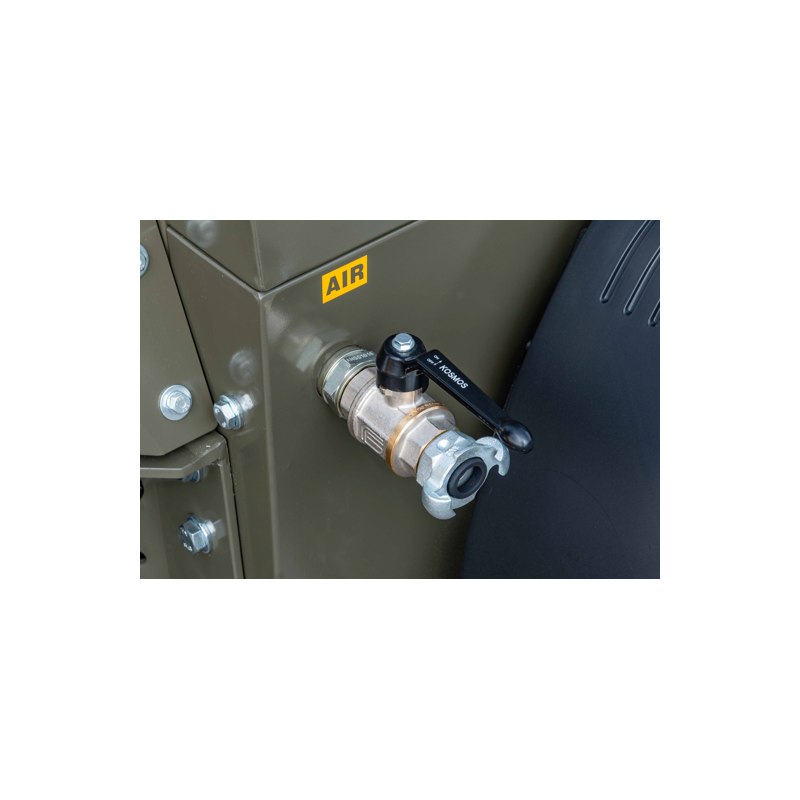

• Compressor: Rotair-Turbosol with a capacity of 4,500 l/min at a pressure of 6 bar

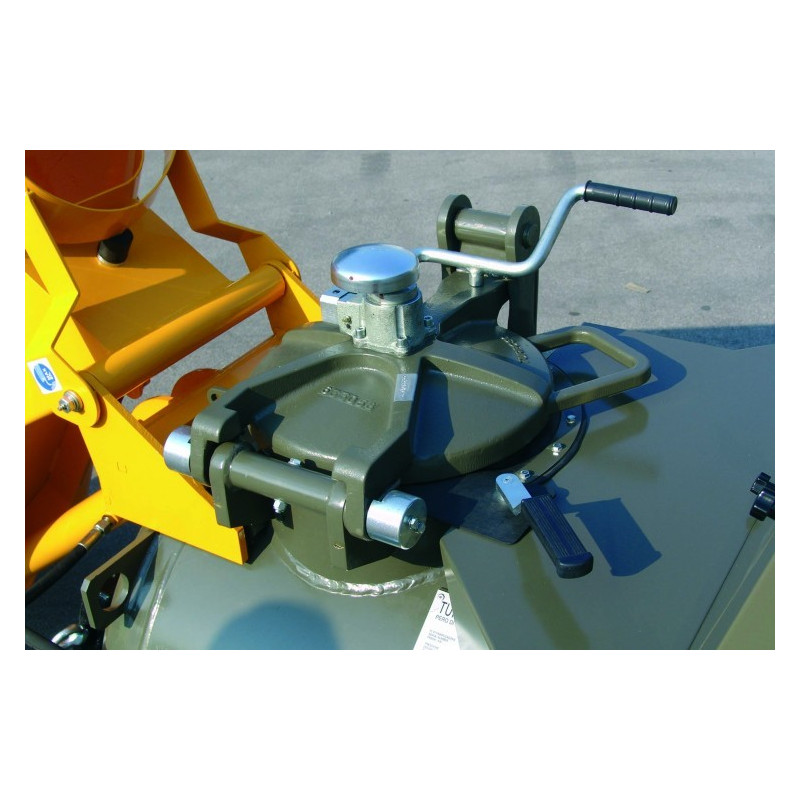

• Pressure tank capacity: 270 l
• Capacity per cycle: 200-220 l
• Number of cycles per hour: 22-24
• Max. delivery distance: 180 m
• Max. delivery height: 120 m
• Filling height: 360 mm
• Hydraulic basket capacity: 270 l
• Hydraulic scraper (shovel): included
• Max. grain size:
  • hose diameter DN 65: 20 mm
  • hose diameter DN 50: 12 mm
  • hose diameter DN 90: 30 mm.
• Chassis versions and dimensions:
  • Manual drawbar – fixed axle and pneumatic wheels
  • Road approval – with brakes and road suspension
• Fuel tank capacity: 60 l
• Dimensions (L x W x H): 3930 x 1500 x 2200 mm (lowered basket) / 4650 x 1500 x 1500 (raised basket)
• Weight: 1650 kg.

*The data presented is theoretical and depends on the density of the mixture, pump wear and hose diameter. Maximum capacity, distance and feeding height cannot be achieved simultaneously.

Equipment:

• Tank made of high-quality materials

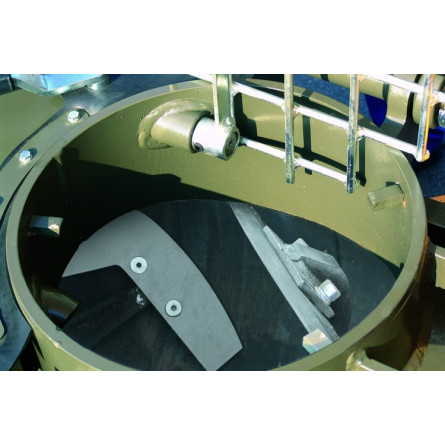

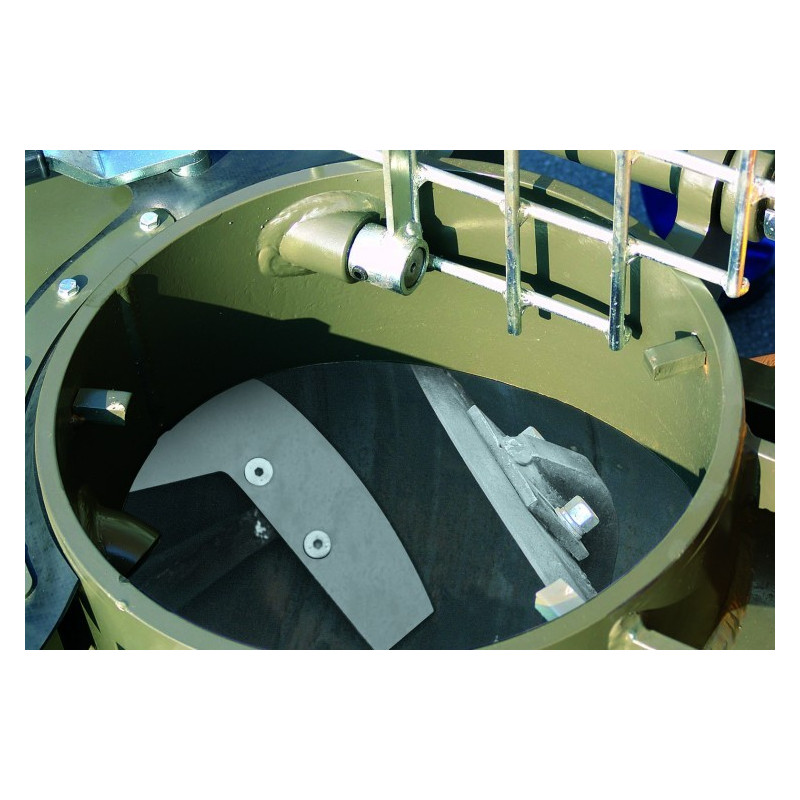

• Agitator with directional scrapers
• Screw compressor
• Fuel level indicator
• Hour meter
• DN65 40 m (20+10+10) hose with Perrot connection system
• Manual grease gun
• Accessory box.

Optional equipment:

• Accessory box and DN50 hoses with CAMLOCK couplings
• Accessory box and DN90 hoses with Vitaulic couplings
• Additional DN90/DN65/DN50 hoses, 10 or 20 m

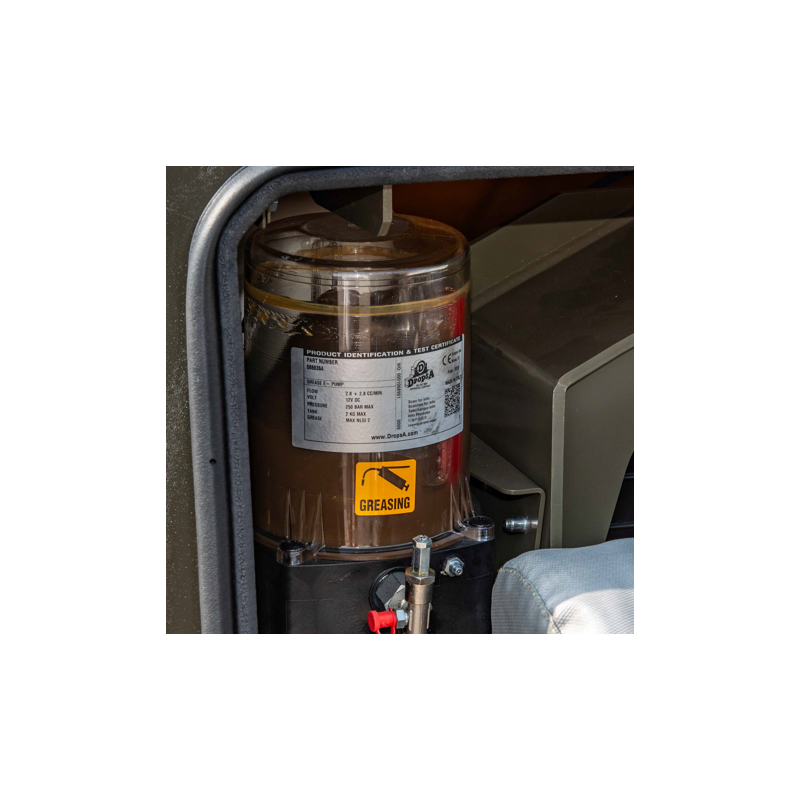

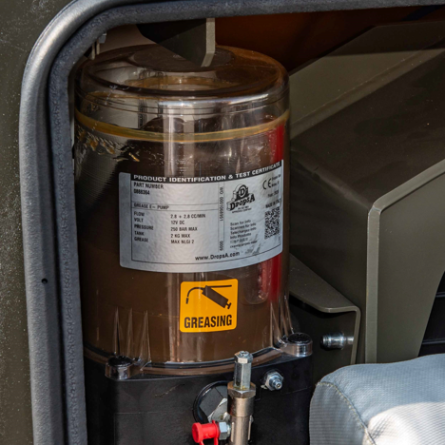

• Automatic lubrication system
• High-pressure washer with hose, gun and nozzles.
