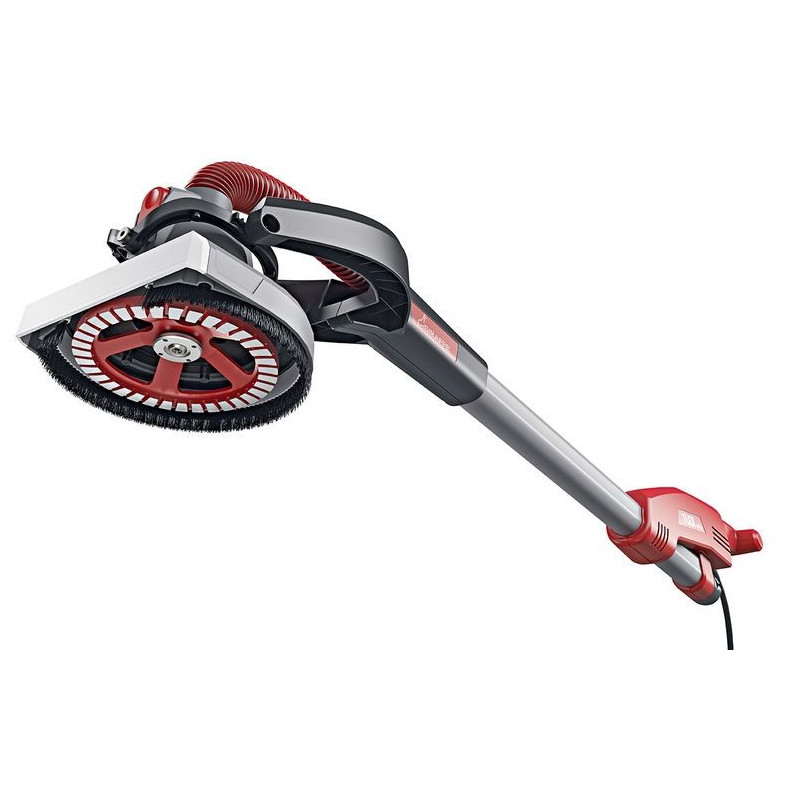

Beton-Giraffe® GDE 10 Set Turbo-Jet grinder - FLEX

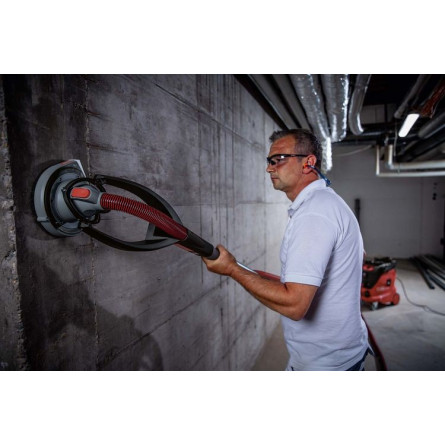

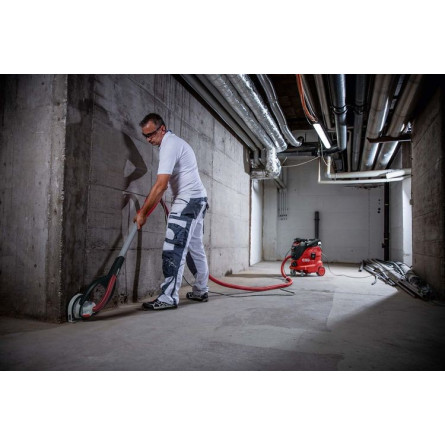

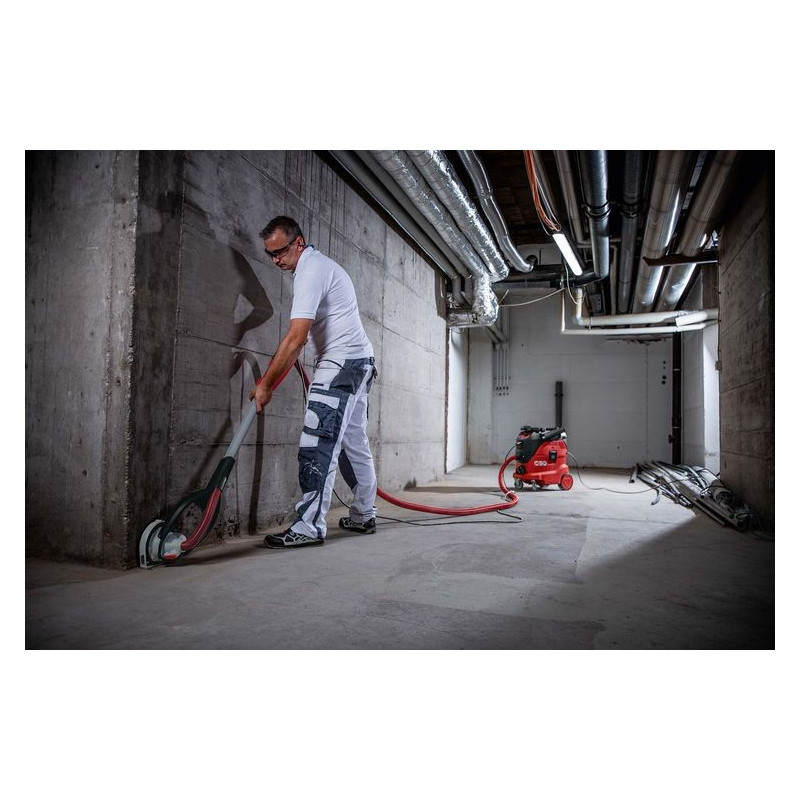

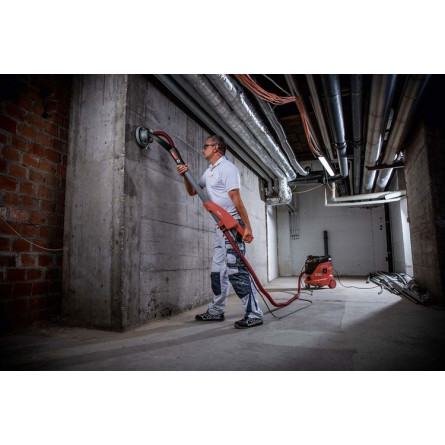

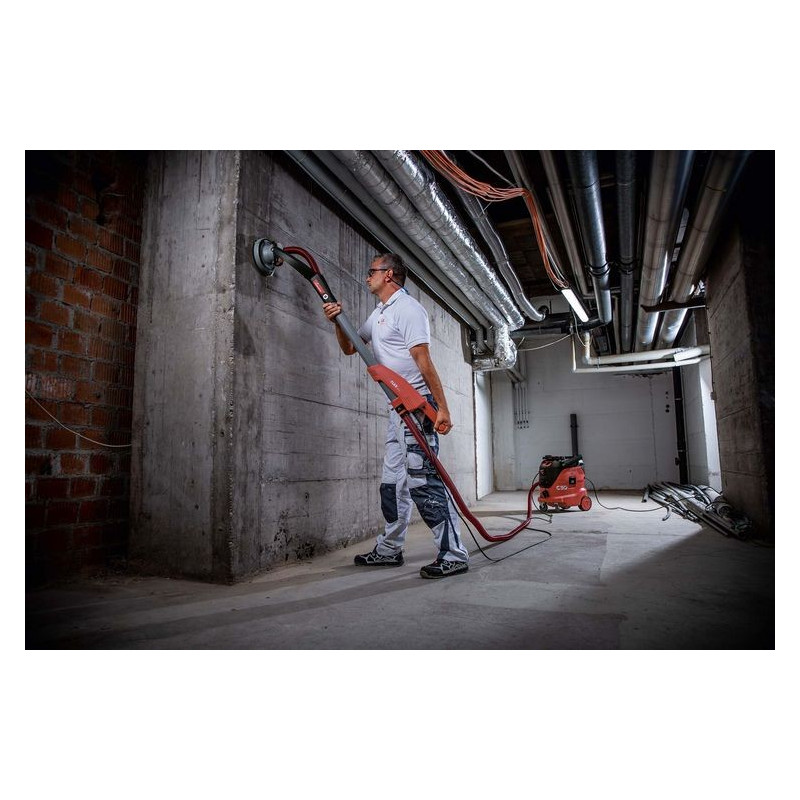

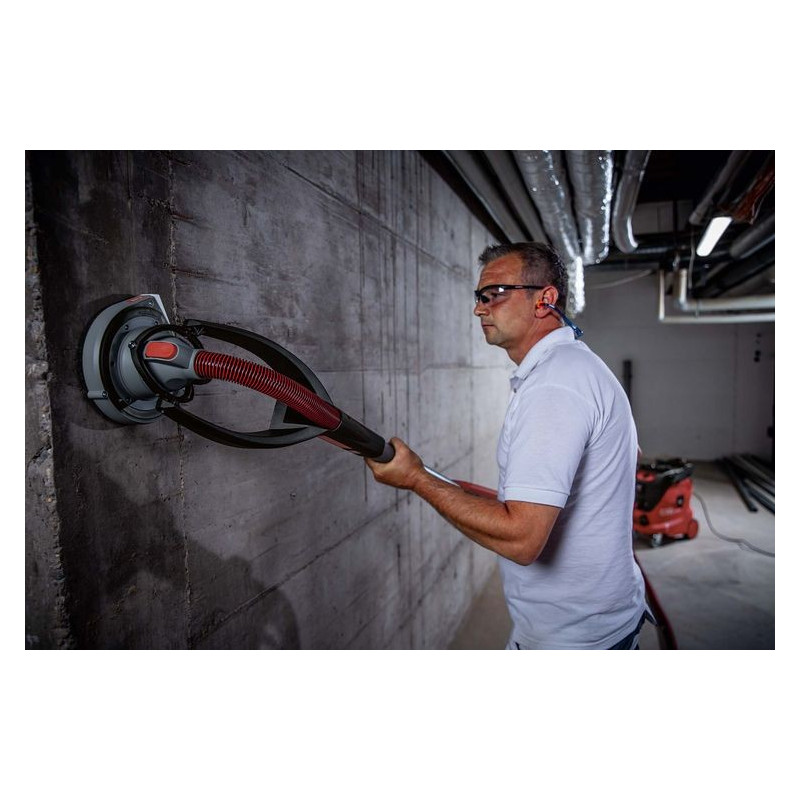

Beton-Giraffe® for grinding, stripping and levelling concrete walls and ceilings

Product features

• Electronics: with continuous speed control, soft start, overload protection and speed selection via a control knob.
• Very handy, lightweight machine with optimum ease of use. Fatigue-free and ergonomic working.
• Equipped with an innovative interchangeable head system with a segment close to the edge. Two grinding heads for different tools can be attached and removed with a single click.
• Easy to use: thanks to the optimal balance of the motor and grinding head.
• Reliable power transmission and high flexibility of the drive. "FLEX technology", tried and tested for decades.
• The cardanic grinding head ensures high flexibility and optimum adjustment when grinding walls and ceilings.
• An effective suction system ensures dust-free working with the option of connecting a vacuum cleaner.
• Dust-proof switch.

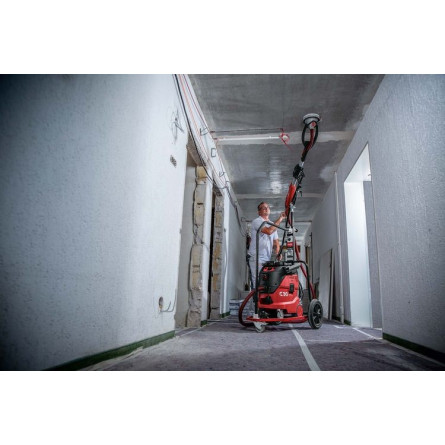

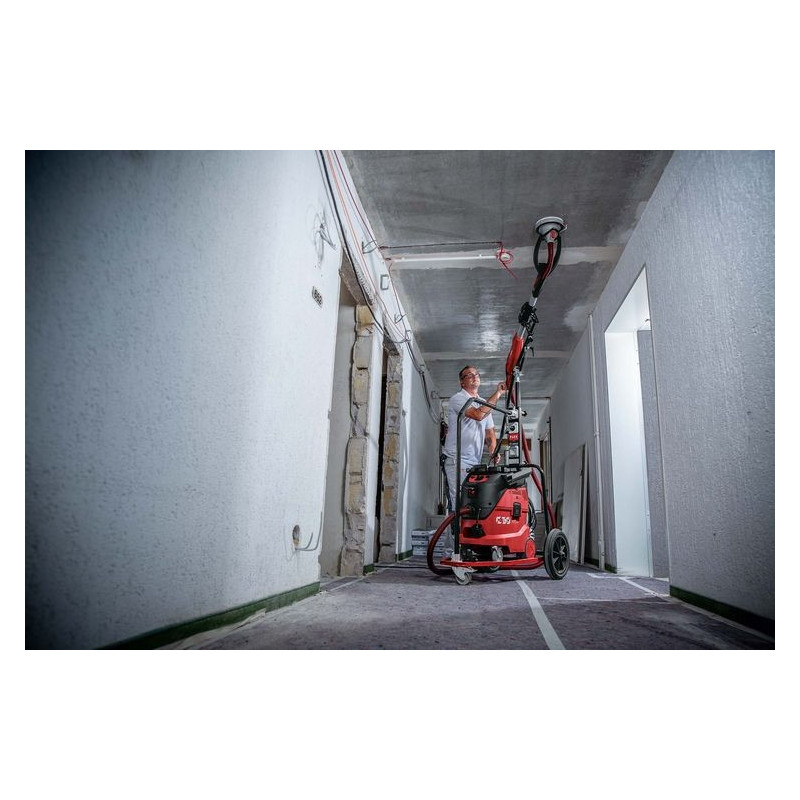

• The GM 340 trolley allows you to work on very large surfaces and rooms up to 3.40 m high.
• Thanks to the innovative case, the sander and accessories can be easily transported.
• The Giraffe® requires no assembly and is ready for immediate use.

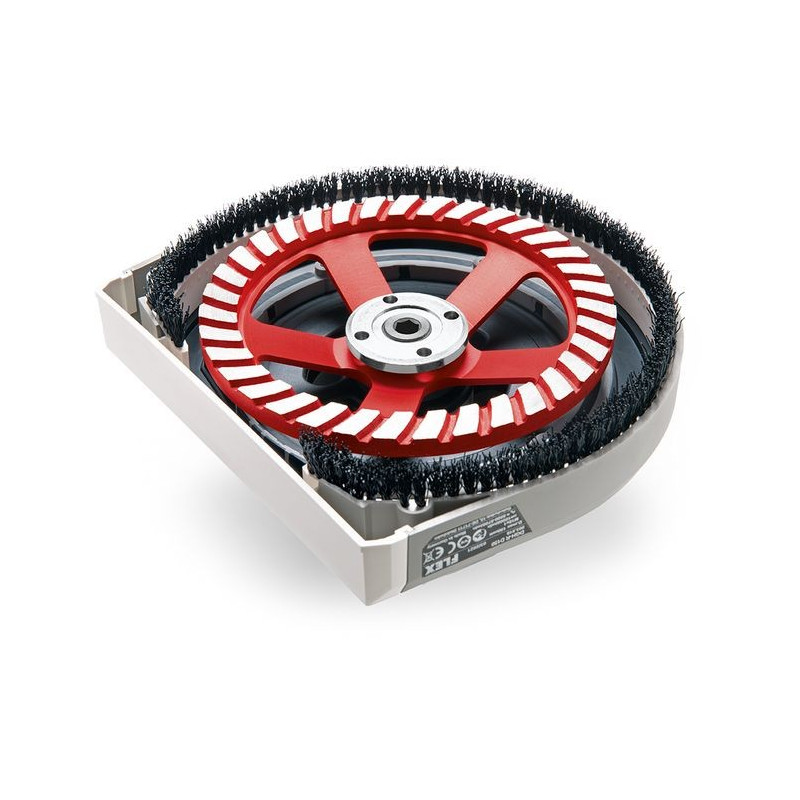

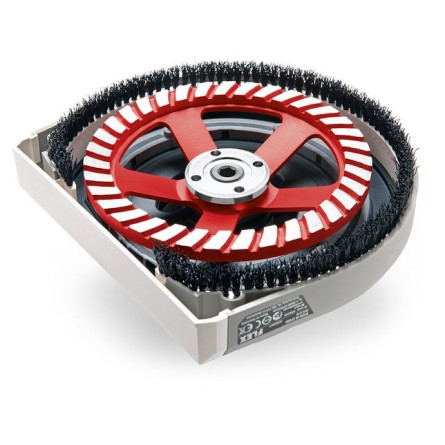

• The Turbo-Jet disc ensures optimum sanding performance. Quiet operation thanks to a large number of diamond segments.

Technical data

• Disc diameter 150 mm
• Idle speed DGHR: 5800-8700 rpm
• Idle speed DSHR: 1700-2500 rpm
• Power consumption 1010 W
• Power output 590 W
• Tool mounting 28 mm Ø
• Head tilt angle: 100'
• Length: 1490 mm
• Power cord length 4 m
• Weight without head: 3.6 kg

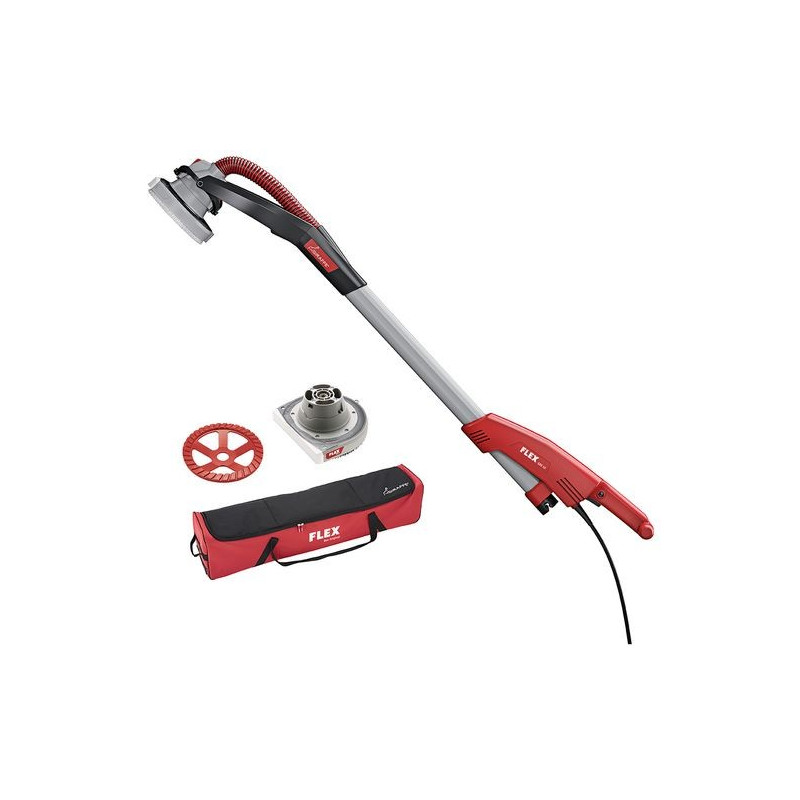

Basic equipment

• Turbo-Jet grinding disc: 504.076

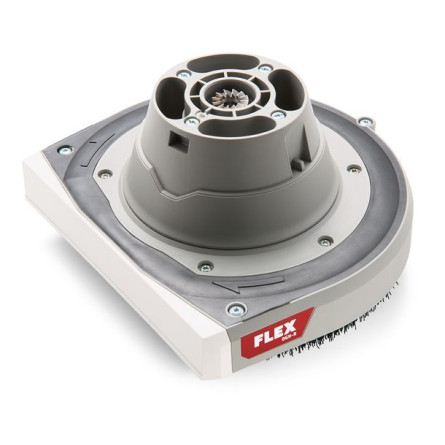

• Grinding head with tool holder DGH-R: 503.819
• DSH-R sanding head with hook-and-loop fastening: 503.827
• SH-FC 32 quick-release snap-on ring: 406.023
• Antistatic suction hose 32 mm Ø x 4 m with snap-on connector and connecting sleeve for vacuum cleaner, with auxiliary air control: 477.605
• Carrying bag: 408.867
