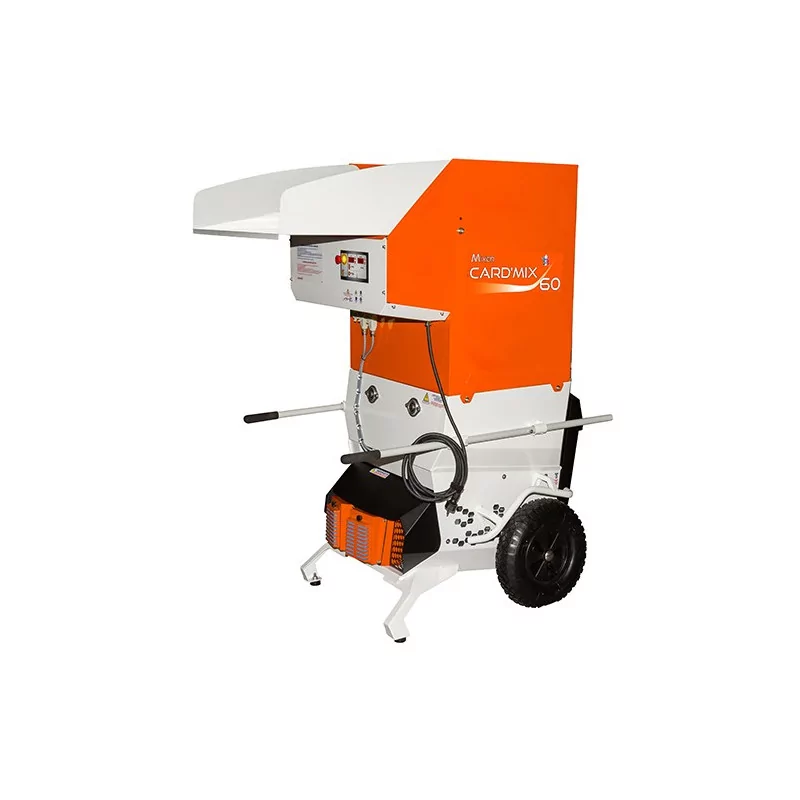

CARD’MIX 60 wool blowing unit - MIXER

Turbine device for blowing in shredded material (mineral and glass wool, cellulose wadding, jute, polyester, fire-retardant materials, etc.). CARD'MIX 60 is the largest device in this series, manufactured by the Italian company MIXER.

Application:

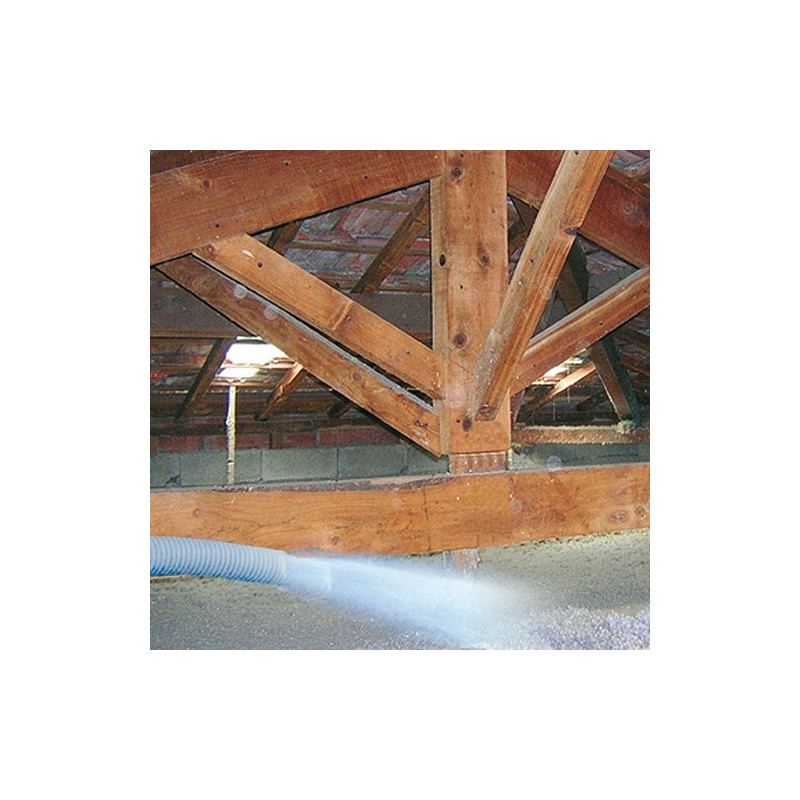

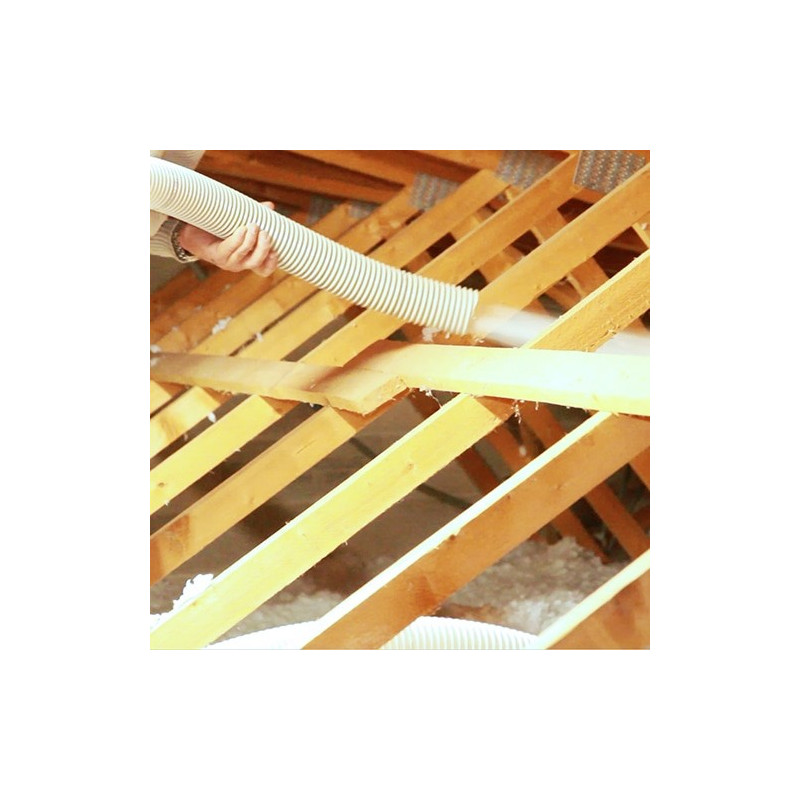

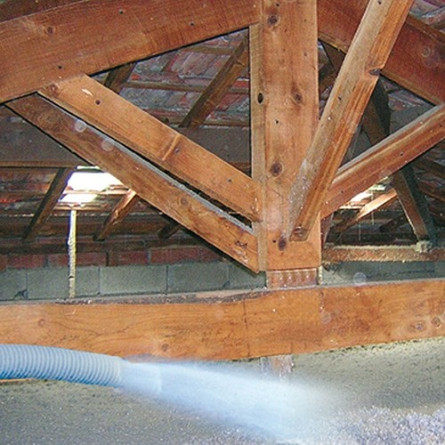

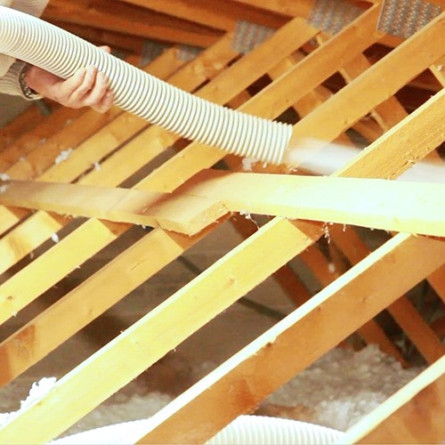

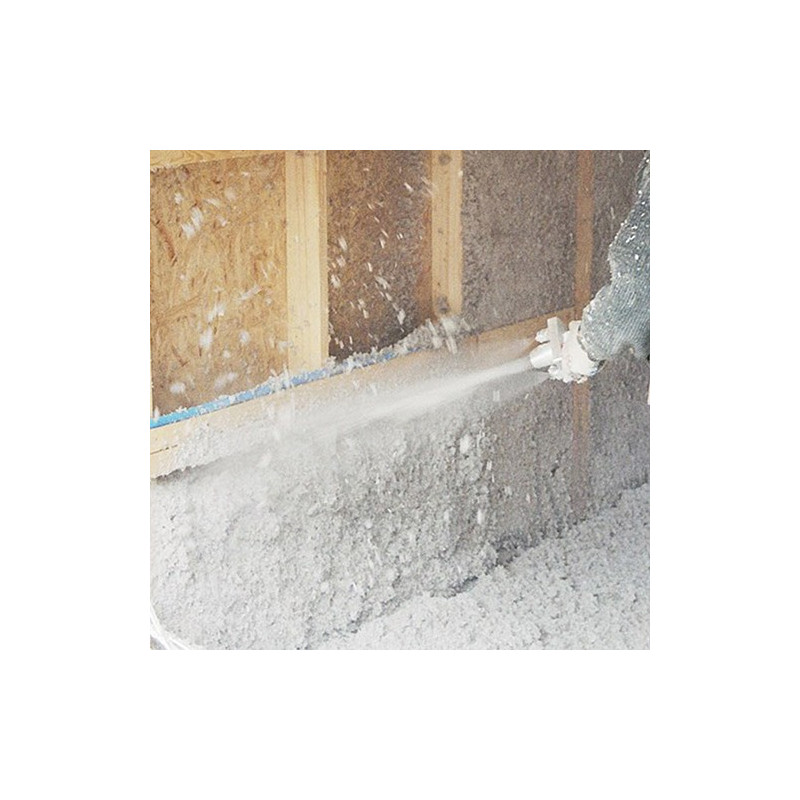

Blowing of shredded material (mineral and glass wool, cellulose wadding, jute, polyester, fire-retardant materials, etc.) for thermal, fire and acoustic insulation of attics, ceilings and walls.

Advantages:

• The device can be quickly dismantled into two parts
• Large, reinforced tank with a capacity of 325 litres
• Two rollers for shredding material
• High performance thanks to two powerful turbines
• Remote control
• Easy to transport and operate

Technical data:

• Tank capacity: 325 L
• Turbine: 5000 L/min – 2 x 1400 W
• Material flow: up to 60 bags/hour
• Drive transmission: chain
• Tank filling height: 139 cm
• Power supply: 230V / 50-60 Hz / 16 A
• Adjustable blowing speed
• Motor power: 1.5 kW
• Operating pressure: 0.3 bar
• 2 suction turbine filters
• Material hose length: 25 m (75 mm)
• Material outlet diameter: 75 mm
• Pneumatic wheels: 300 mm
• Wired control: 25 m start/stop
• Dimensions (L x W x H): 116 x 76 x 161 cm
• Weight: 195 kg
• Noise level: 100 LWA
• Catalogue number: 3B03705000

Equipment:

• Material hose Ø 75 mm x 25 m
• Remote control with 25 m cable
