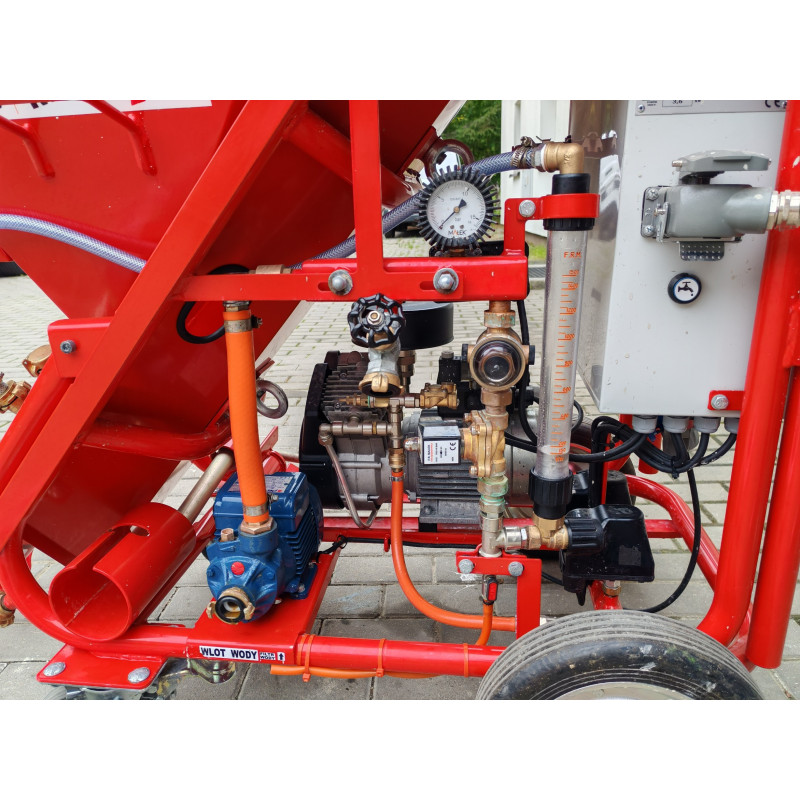

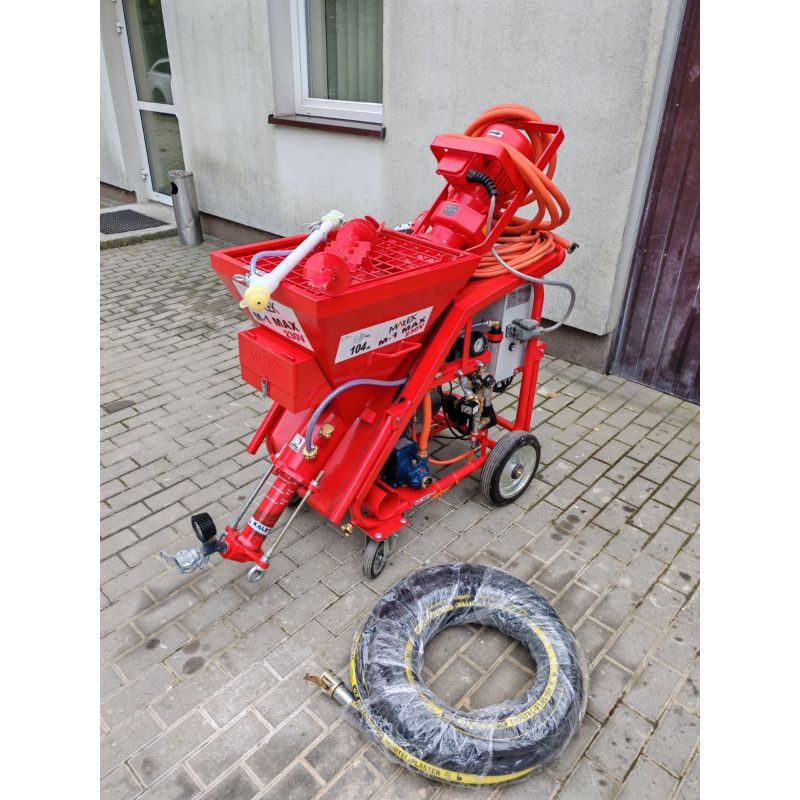

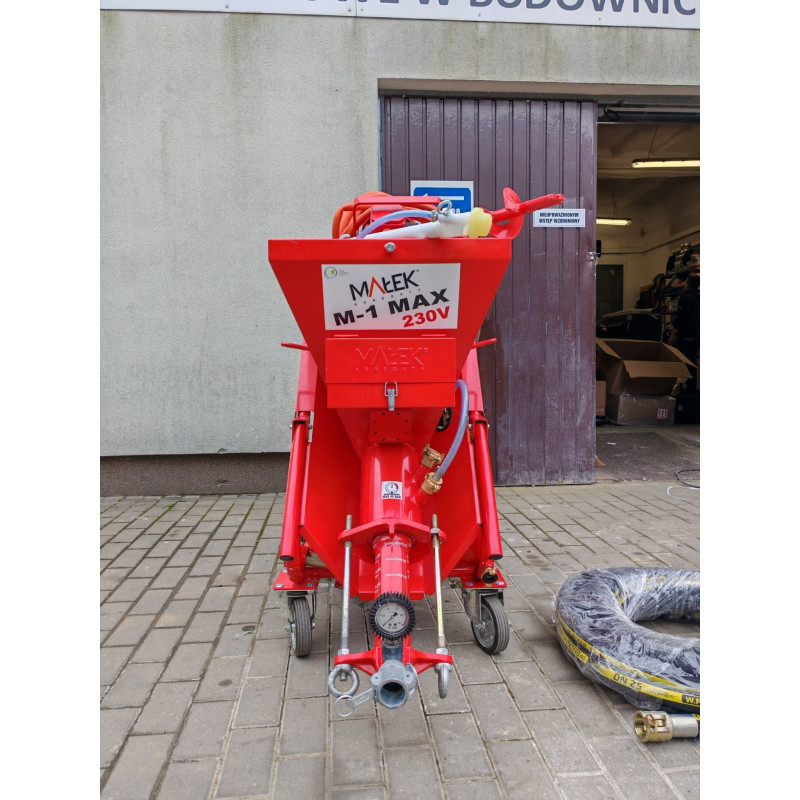

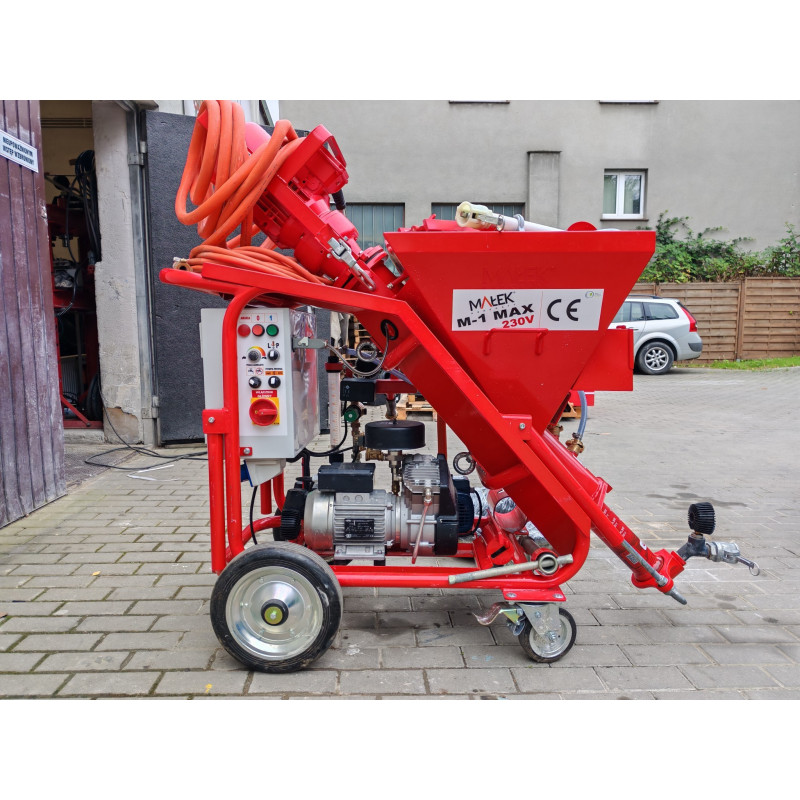

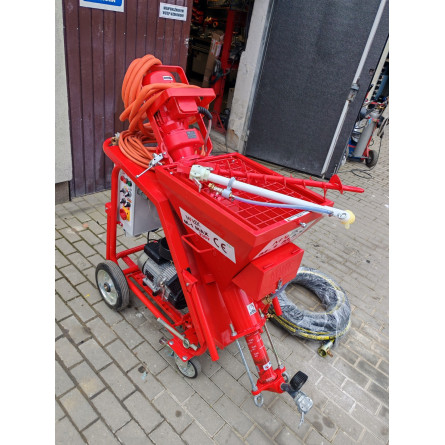

M-1 MAX 230V plastering and filling machine - Demonstration model
The machine has been used for demonstration purposes. The machine is covered by a 6-month warranty.
The unit is designed for the mechanical feeding of mortars with a grain size of up to 3 mm, including: gypsum, cement-lime, lime and cement plasters; masonry, damping, joint, reinforcement and adhesive mortars; machine screeds, adhesives, lime finishes, anhydrite screeds, facade, decorative and fireproof plasters, bituminous compounds, single-component polyurethane compounds, ready-made finishes and fillers.
The tank can be filled with bagged (loose) or liquid material.
Characteristic data:
- gear motor feed pump 6.05 kW S3-60 %-60%; 350 rpm
- PKM60 water pump 230–400 V, 350 W

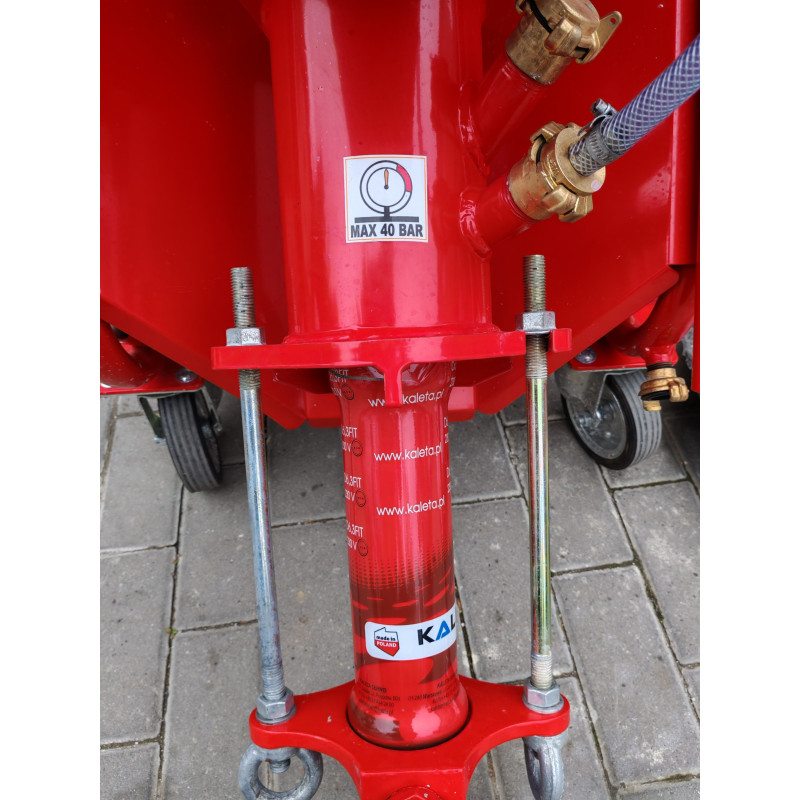

- D6–3 stator + rotor pump unit
- oil-free piston air compressor 230 V, 5.5 bar, 230 l/min
- cleaning unit – shaft and cleaner
- socket wrench for screwing in the rotor
- cleaning ball for the working hose
- water meter 150–1500 l/h
- DN 25 10 m working hose with camlock couplings
- 3/4″ reinforced water hose, 25 m pressure fitting and fitting with connector
- reinforced air hose 3/8" 12.5 m 2 x geka fitting with connector
- 3 x 2.5 mm² power cable, 10 m, PCE 230V plug
- 75 cm spray lance with Ø 12 nozzle
- gun scraper
- key for unscrewing the water reducer glass

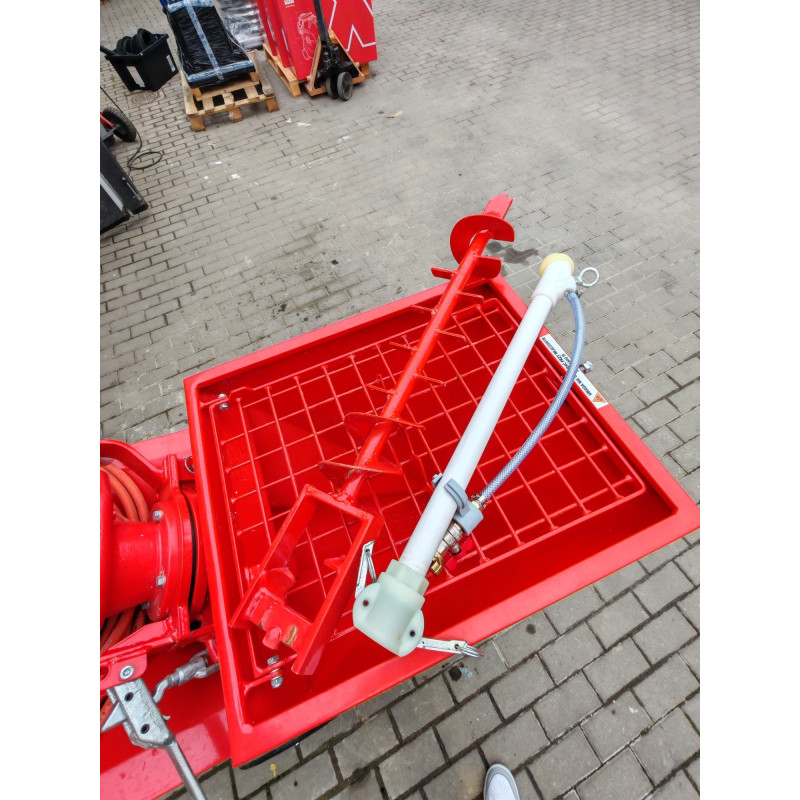

- M-1 MAX mixer

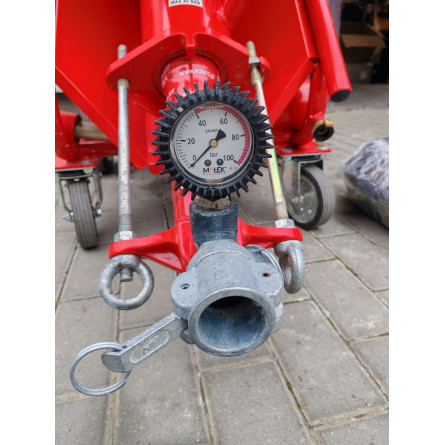

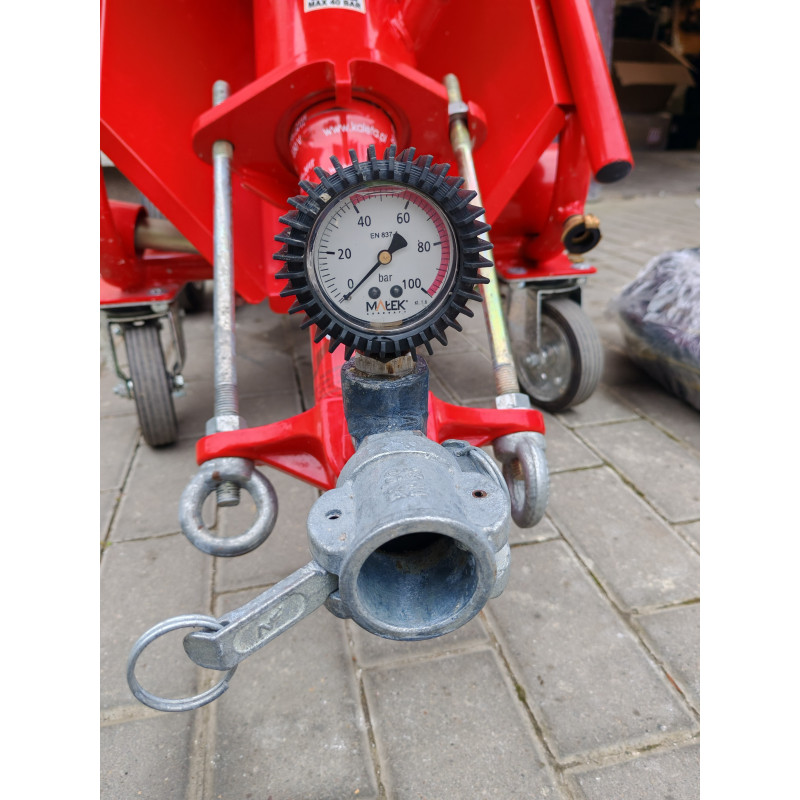

- DN 25 pump yoke female camlock connector type D with 60 bar pressure gauge
- spray gun for producing water mist
Advantages of the M-1 Max 230V plastering and filling unit:
- professional finish quality
- Polish product
- comfortable operation and high efficiency
- low operating costs of the screw pump
- separate tank and pump modules

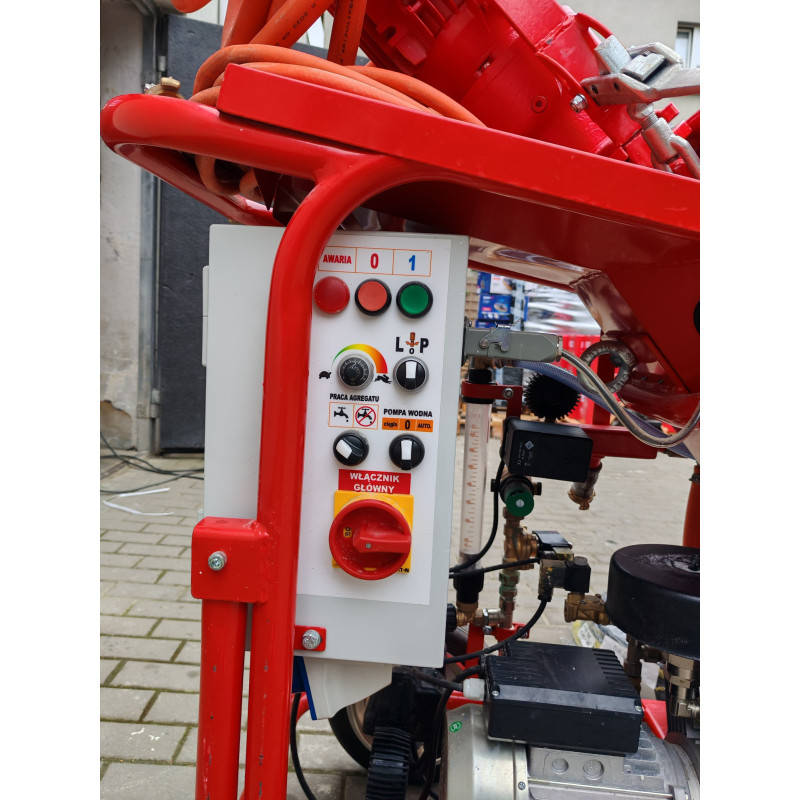

- built-in unit operation switch "operation with water - without water"
- built-in AUTO/0/HAND water pump operation switch
- control of mixture reversal at reverse speed in case of mixture blockage
- PEDROLLO PKM 60 230 V 350W water pump with removal option
- electrical box assembled on EATON components
- the machine has electronic motor overload protection
- smooth speed control of the feed pump using an inverter
- feed height 100 cm
- tank capacity 70 kg
- maximum discharge pressure 40 bar
- maximum feed distance 40 m
- possibility of connecting a remote control for the unit
- possibility of connecting a spray gun for facade finishing and garage systems
- possibility of applying ready-made fillers without a compressor
- application of plaster, finishing coats and bituminous compounds using a compressor
- built-in switch for operating the unit with or without water
- smooth speed control of the FEED PUMP
- 230 V power supply
Equipment:
- 1x Kaleta D6-3 FIT screw pump
- 1x DN25 plastering hose, camlock - 10m
- 1x DN25 plastering gun, camlock - 50 cm
- 1x 3/8'' air hose - 12.5 m
- 1x 3/4'' water hose - 10m
- 1x mixer
- 1x worm pump wrench
- 1x cleaner
